25mm2 MV Power Cables

25mm2 MV Power Cables

    • 25mm2 MV Power Cables
    • 25mm2 MV Power Cables
    • 25mm2 MV Power Cables
  • 25mm2 MV Power Cables

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Conductor Core: Annealed Copper Or Hard Drawn Aluminum Insulation Material: Crosslinked Polyethylene (XLPE)
    Armoured Types: DSTA/SWA/AWA Or Unarmoured Outer Sheath Material: Polyvinyl Chloride (PVC) Or Polyethylene (PE)
    Standard: BS IEC ASTM DIN, IEC 60502-2, GB12706, IEC60228 Colour: Black Or As Requirement
    Packing: Wooden-steel Drum, Steel Drum, Wooden Drum Special Requiremets: Fire-resistant,flame Retardant,low Smoke Halogen Free
    Sample: Y, Provided Application: Underground,Construction,Industrial,power Distribution And Transmission Line
    Voltage: 3.6kv To 35kv
    High Light:

    25mm2 MV Power Cables

    ,

    35mm2 MV Power Cables

    ,

    50mm2 MV Power Cables

    35kV MV Power Cables





    MEDIUM VOLTAGE CABLE VOLTAGE



    3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV

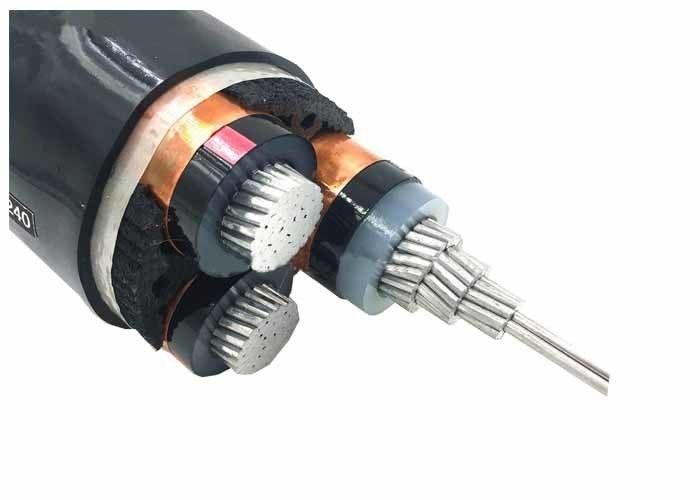

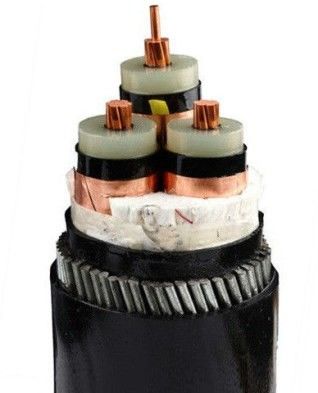

    MEDIUM VOLTAGE CABLE CONSTRUCTION



    1. Conductor: Copper or aluminium (class1 or class 2)

    2. Inner semi-conducting layer

    3. Insulation: Cross inked polyethylene (XLPE)

    4. Outer semi-conducting layer

    5. Armoured or Unarmoured

    6. Wrapping of conductive material

    7. Screen: Braiding of copper wires or copper tape

    8. Separator

    9. Outer jacket: PVC or PE



    MEDIUM VOLTAGE CABLE APPLICATION



    MV xlpe cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.



    MEDIUM VOLTAGE CABLE CHARACTERISTICS



    Suitable for power transmission and distribution lines with rated voltage 3.6/6 kV~26/35 kV.

    1. Rated voltages: 3.6/6 kV~26/35 kV

    2. The ambient temperature for installation: ≥0℃

    3. Maximum conductor temperature in normal operation:≤90℃

    4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃





    XLPE INSULATE PVC SHEATH MV CABLE DATA



    Type Specification

    Conductor diameter



    Nominal thickness of insulation Nominal sheath thickness Approx. Outer diameter of cable Approx. Weight of cable
                CU AL

    YJV CU/XLPE/PVC

    YJLV

    AL/XLPE/PVC

    mm2 mm mm mm mm kg/km kg/km
      3×25 6.0 2.5 2.1 36.1 1660 1203
      3×35 7.0 2.5 2.1 38.3 2018 1383
      3×50 8.4 2.5 2.2 41.3 2481 1619
      3×70 10.0 2.5 2.4 45.1 3199 1959
      3×95 11.5 2.5 2.5 48.6 4064 2339
      3×120 13.0 2.5 2.6 52.9 4902 2729
      3×150 14.5 2.5 2.7 55.2 5758 3072
      3×185 16.2 2.5 2.8 59.8 6965 3609
      3×240 18.4 2.5 3.0 64.7 8724 4309
      3×300 20.5 2.5 3.2 70.5 10701 5154
      3×400 23.5 2.5 3.4 78.0 13417

    6340

    medium voltage cable



    MEDIUM VOLTAGE CABLE TYPE & APPLICATION



    Chinese Type (General Type)

    Description

    Application

    Cu

    Al

    YJV (CU/XLPE/PVC)

    YJLV (AL/XLPE/PVC)

    Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable

    Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.

    YJY (CU/XLPE/PE)

    YJLY (AL/XLPE/PE)

    Cu conductor(Al conductor)XLPE insulated PE sheathed power cable

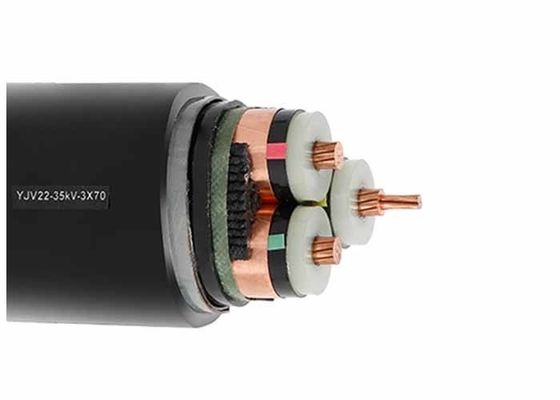

    YJV22 (CU/XLPE/STA/PVC)

    YJLV22 (AL/XLPE/STA/PVC)

    Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable

    For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

    YJV23 (CU/XLPE/STA/PE)

    YJLV23 (AL/XLPE/STA/PE)

    Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable

    YJV62 (CU/XLPE/ATA/PVC)

    YJLV62 (AL/XLPE/ATA/PVC)

    Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable

    YJV32 (CU/XLPE/SWA/PVC)

    YJLV32 (AL/XLPE/SWA/PVC)

    Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable

    For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force

    YJV33 (CU/XLPE/SWA/PE)

    YJLV33 (AL/XLPE/SWA/PE)

    Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable

    YJV72 (CU/XLPE/AWA/PVC)

    YJLV72 (AL/XLPE/AWA/PVC)

    Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable



    mv cable
