| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor: | Copper Conductor | Insulation: | XLPE Insulated |
|---|---|---|---|
| Dia: | 25mm2 | Voltage: | 600V/1kv |
| Core Number:: | 1 | Outer Sheath: | PVC |
| Highlight: | 25mm2 LV Power Cables,25mm2 lv armoured cable,35mm2 LV Power Cables |
||

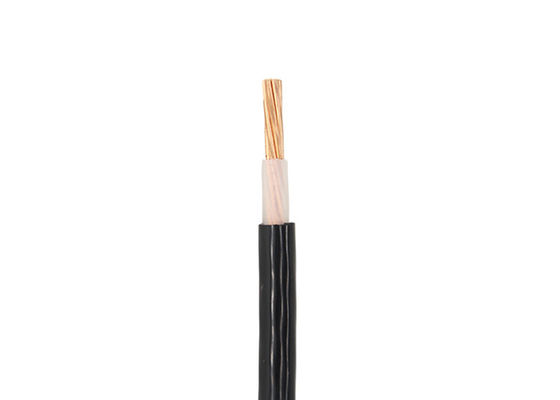

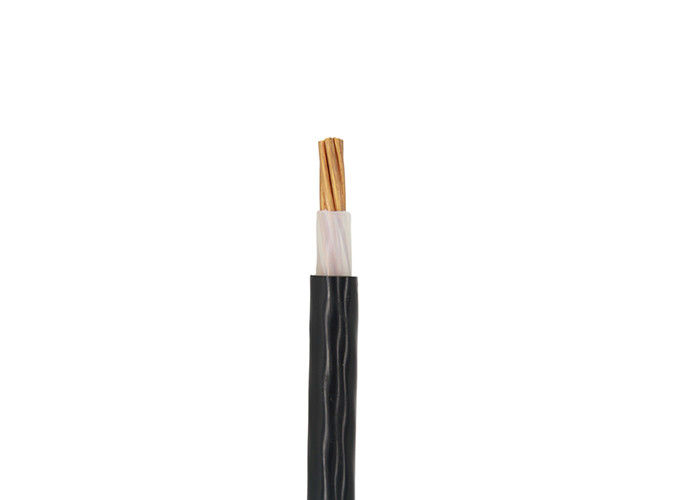

Copper Conductor 1 Core 25mm2 35mm2 LV Power Cables
Application:
Low Voltage Electric Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Construction:
Conductor: Cu (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC
Features:
1. High quality
2. Strict production process control
3. Years of production experience
4. Strict inspection and test before leaving the factory
| Single(1) core, XLPE Insulated Power Cable | |||||||||
| Size | Cable dia. | Cable weight | |||||||
| None- | Steel tape armored | Steel wire armored | None- | Steel tape armored | Steel wire armored | ||||
| armored | armored | ||||||||
| CU | AL | CU | AL | CU | AL | ||||
| mm2 | mm | kg/km | |||||||
| 16 | 9.3 | 14.1 | 14.9 | 204 | 106 | 348 | 251 | 365 | 267 |
| 25 | 10.7 | 15.5 | 16.3 | 296 | 145 | 459 | 307 | 477 | 326 |
| 35 | 11.7 | 16.5 | 17.8 | 389 | 179 | 564 | 355 | 610 | 401 |
