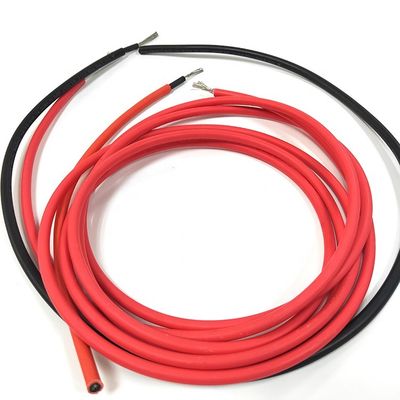

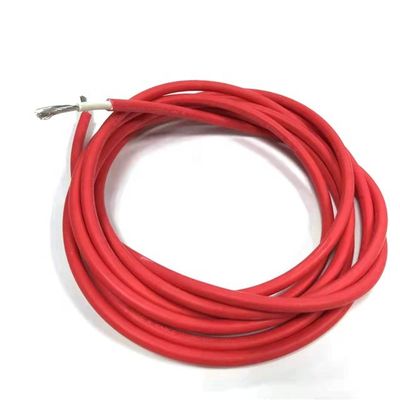

0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel

0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel

    • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
    • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
    • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
    • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
    • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
  • 0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Insulation Material: XLPE Application: PV Installation/Solar Project
    Conductor Material: Tinner Copper Jacket: XLPE
    Product Name: 4mm Solar Cable Color: Black,Red
    Number Of Cores: Single Core Construction: 56/0.30±0.01
    Voltage: 0.6/1kV Thermal Endurance: 25 Years
    Characteristic: Fire Protection,Low Load MOQ: 500m
    Business Type: Manufacturer Packing: Wooden Drum Or Rolls
    Port: Shanghai
    High Light:

    4mm HV Power Cable

    ,

    6mm HV Power Cable

    ,

    0.6/1kV HV Power Cable

    0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel





    Product Description



    Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolysis.
    These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
    They operate at DC voltage and provide long life in exposed conditions.



    Technical data:



    Nominal voltage

    U0/U=600/1000V AC,1000/1800V DC

    Test voltage

    6500V,50HZ,5min

    Max. conductor temperature

    -40℃ up to +125℃

    Ambient temperature

    -40℃up to +90℃

    Max. Short circuit temperature

    280℃

    Bending radius

    fixed installation>4×Φ Occasionally moved>5×Φ





    1. Conductor: Tinned copper.
    2. Insulation: XLPE/XLPO
    3. Sheath: XLPE/XLPO

    4. Fire-resistance performance:IEC 60332-1

    5. Approvals:TUV 2PfG 1169/08;EN50268-2

    6. Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502

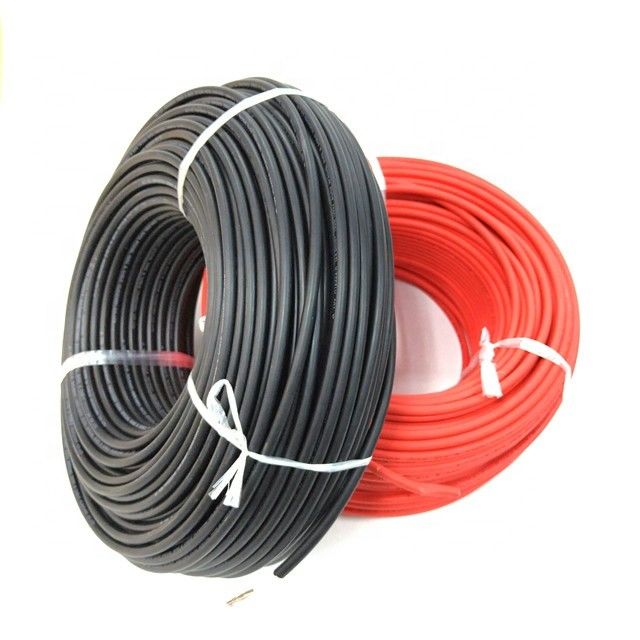

     0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel 1

    Model Type



    Size(n/mm2)

    Conductor Construction (n/mm)

    Finished Cable OD(mm)

    Max DC Resistance @20C(ohm/KM)

    Curent (A) (underground installation)

    1*4

    52/0.30±0.008

    4.85

    5.09

    52

    1*6

    78/0.30±0.008

    5.55

    3.39

    67

    2*4

    52/0.30±0.008

    4.85*10.00

    5.09

    44

    2*6

    78/0.30±0.008

    5.55*10.00

    3.39

    57

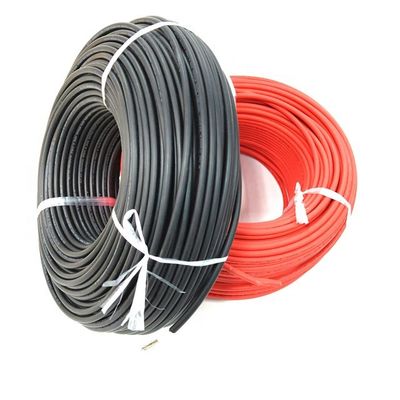

    0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel 2
