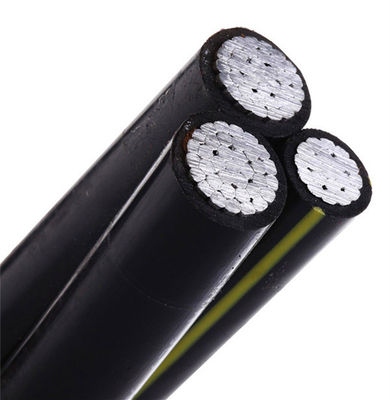

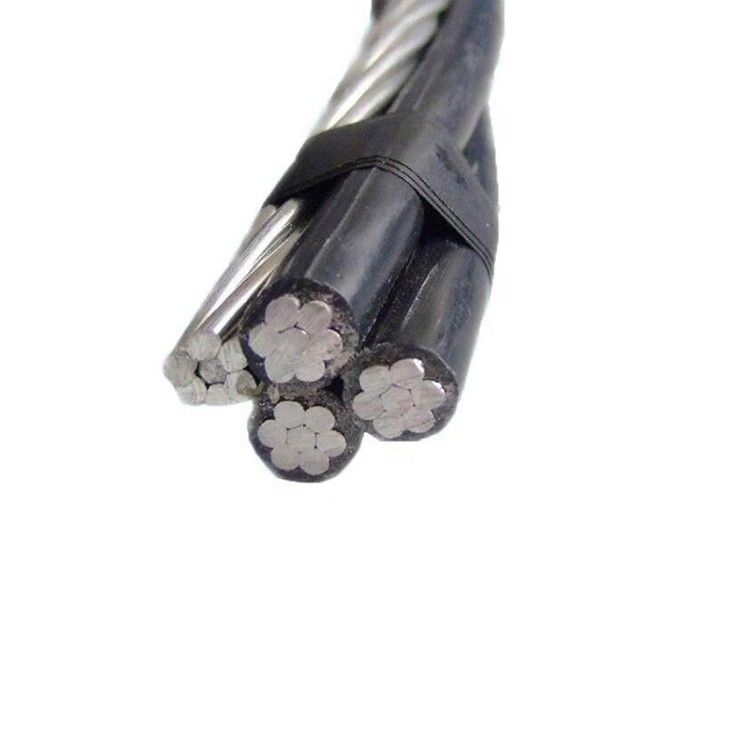

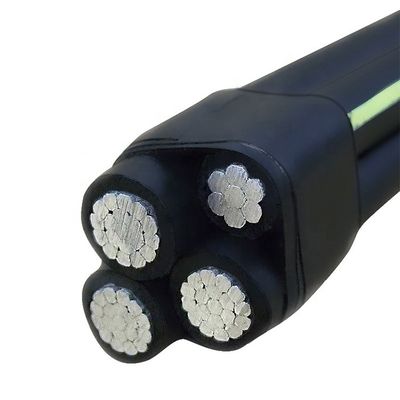

1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable

1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable

    • 1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable
    • 1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable
    • 1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable
  • 1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Conductor: Copper, Aluminum, Aluminum Alloy Insulation: XLPE, PVC, PE
    Colour: Black Or As Your Request Standard: GB/T12527, BS, IEC, ASTM, DIN
    Voltage: Low Voltage Packing: Wooden Drum, Steel Wooden Drum, Coil
    High Light:

    240mm2 abc power cable


    240mm2 overhead aerial cable


    1.2kV overhead aerial cable

    1.2kV Low Voltage 240mm2 ABC Overhead Aerial Cable




    Type of ABC Aerial Bundle Cable


    No. Product Type Application
    1 PVC insulated aerial bundle cable For aerial power transmission
    2 PE insulated aerial bundle cable
    3 XLPE insulated aerial bundle cable
    4 Steel reinforced aluminum wire with PVC insulated aerial b undle cable For aerial power transmission, able to bear moderate pulling force.

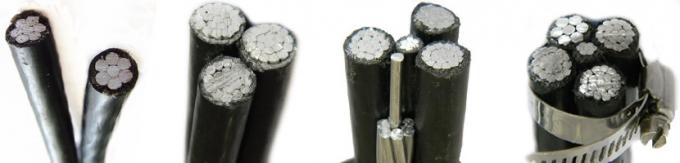

    aerial bundle cable


    Production Range of ABC Aerial Bundle Cable


    Rated voltage: 0.6/1 (1.2) kV

    No. of cores: 1~5, 3+1, 4+1, 3+2

    Nominal cross sectional area: 10~240mm2


    aerial bundle cable


    Construction of ABC Aerial Bundle Cable:


    Phase Conductor Round stranded (compacted or non-compacted) 1350-H19 aluminum or Copper conductor, AAAC, ACSR etc.
    Neutral Conductor (Messenger Conductor) Round stranded (compacted or non-compacted) 6201 AAAC or AAC, ACSR
    Street Lighting Conductor Round stranded or compacted aluminum conductor
    Insulation LDPE, HDPE, XLPE, PVC (UV-resistant)


    (Remark: This is just the normal construction. HUANGHE CABLE can also design and produce the cables according to your special requirement.)




    abc cable


    Application of ABC Aerial Bundle Cable:


    Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.


    aerial bundle cable



    600V ABC Aerial Bundle Cable Data


    Number of Cores x Nominal Cross Section Overall Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
    No.×mm² mm Kg/Km Ω/Km kN A
    1x16 RM 8,0 74 1910 2,5 72
    1x25 RM 9,0 106 1200 4,0 107
    1x95 RM 15,4 333 0,320 13,7 240
    1x185 RM 21,0 611 0,164 28,7 389
    1x240 RM 24,0 801 0,125 37,2 467
    2x16 RM 15,6 147 1910 2,5 72
    2x25 RM 18,0 208 1200 4,0 107
    2x70 RM 25,4 505 0,443 10,7 205
    4x16 RM 18,8 286 1910 2,5 72
    4x70 RM 31,8 1.009 0,443 10,7 205
    4x95 RM 37,8 1.332 0,320 13,7 240
    4x70 + 1x25 RM 360 1105 0,443/1,200 10,7/4,0 205/107
    4x70 + 2x25 RM 400 1217 0,443/1,200 10,7/4,0



    abc cable
