| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Application: | Industrial,Construction,household Appliances | Insulation Material: | PVC/XLPE/PE |
|---|---|---|---|
| Jacket: | PVC,PVC Or PE | Standard: | IEC60502,GB12706 |
| Rated Voltage: | AC06/1.0kV | Core: | 5 |
| High Light: | Low Voltage XLPE Power Cables,750V XLPE Power Cables,5 Core Corexlpe insulated cable |
||
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment,Copper armoured cable 4 core 25mm 35mm has excellent chemical corrosion resistance, but also has the properties of flame retardant and non water-absorption and suitable for underground installation, which can withstand certain mechanical pressure,but can’t withstand mechanical tension.
Construre :
1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4. PVC or XLPE sheathed.
5. Number of cable cores: one core (Single core),two cores (Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

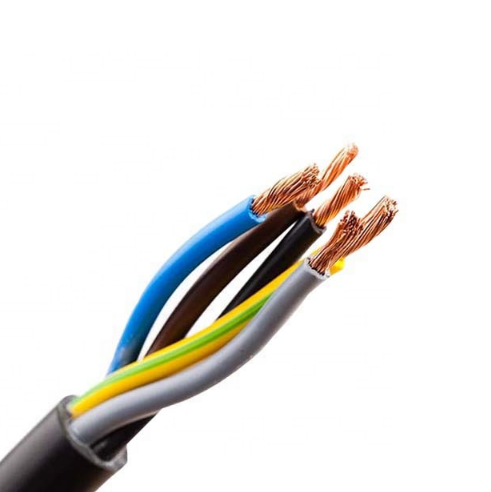

Low voltage copper conductor one core to five cores XLPE Electrical Cable
| Type | Designation | Operating Performance |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable |
1). Rated power frequency voltage Uo/U: 0.6/1KV. 4). The ambient temperature under installation should not below 0℃ 6). The test voltage (A.C.): 3.5kV/5min. 7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332. |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
Low voltage copper conductor one core to five cores XLPE Electrical Cable
