Place of Origin: | china |
Brand Name: | OEM |
Certification: | ISO/RoHS/CE |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | wooden drum |
Delivery Time: | 5-15day |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000meters per week |
Standard: | BS6724 | Sample: | Available |
---|---|---|---|
Jacket: | LSZH | Conductor Operating Temp: | 90 ℃ |
Rated Voltage: | 600/1000V | Sheath Color: | Orange |
High Light: | 1000V Low Smoke Zero Halogen Wire,1000V lszh power cable,600v low smoke zero halogen wire |

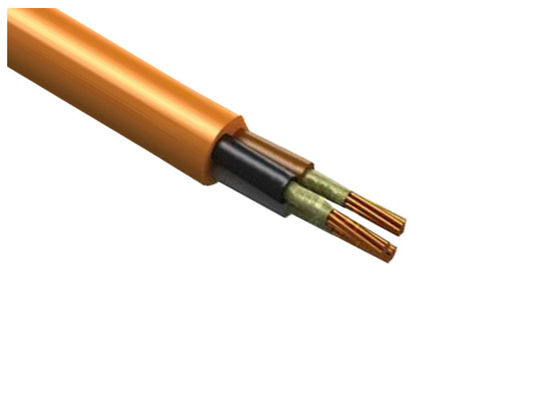

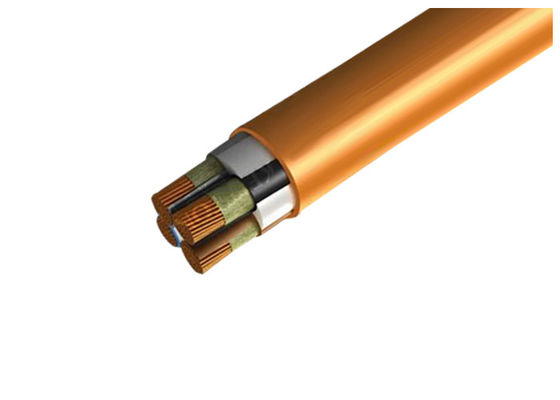

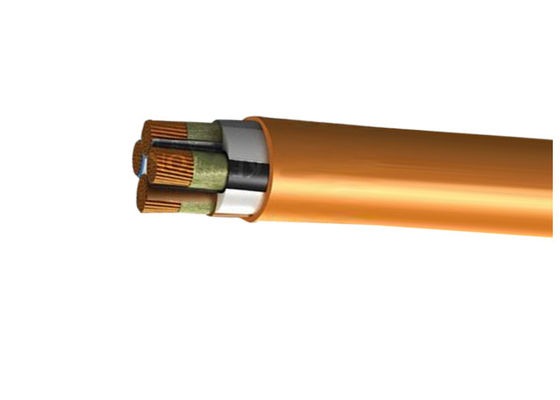

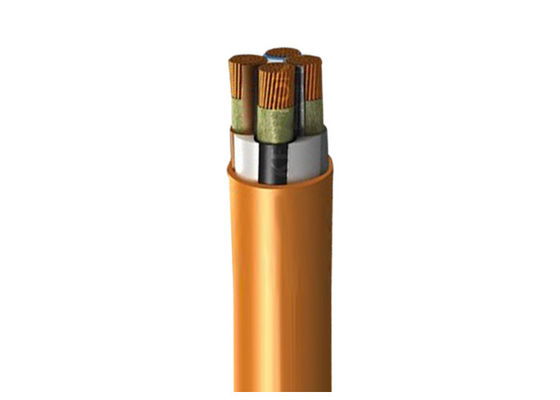

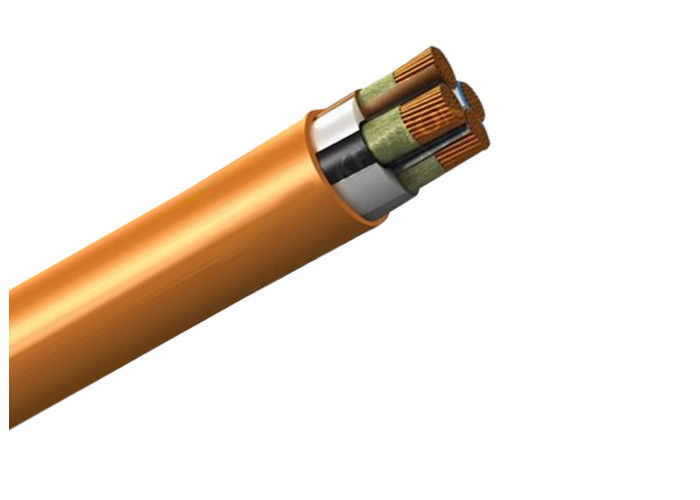

1000V Low Smoke Zero Halogen Wire
LSZH cable/wire refers to cables where the cable jacketing and insulation is made with materials that produce low/limited smoke and non-toxic halogens when exposed to fire or high temperatures. There is also low smoke cable and zero halogen cable / halogen free cable.
Low smoke zero halogen cables are used when fire safety is critical, especially in enclosed spaces. A number of fires in transportation facilities and other locations led to the development of LSZH cables. In these emergency fire situations, the low smoke factor helps maintain visibility and can reduce respiratory damage, while zero halogen material cuts the production of toxic, halogenated gases.
Construction
Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with BS EN 60228
Insulation : 90°C cross linked XLPE insulation complying with BS7655 Type GP8
Screen : Laminated aluminium tape screen bonded to sheath and in contact with full size tinned annealed copper circuit protective conductor for 2, 3 & 4 core cables
Sheath : Robust thermoplastic LSOH sheath. Colour – White. Other colours are available to special order
LSOH Wiring Cables & Conduit Wire
Core Identification : o Brown o Blue, o Brown o Black o Grey or o Blue o Brown o Black o Grey
Specifications : AFUMEX LSX screened wiring cables comply with BS 8436 for 1.0mm² to 2.5mm². AFUMEX LSX (4mm and 6mm) screened wiring cables are rated at 600/1000 V.
Features
Nominal cross sectional area mm² | Approx. overall diameter mm | Approx. Dia. Under Armour mm | Nominal diameter of armour wires mm | Approx. cable weight kg/km | Maximum conductor resistance @ 20°C Ohms/km | Conductor short circuit rating (1 sec) kA | Three phase AC clipped direct | Three phase AC trefoil touching free air Amps | Volt drop Three phase AC mV/A/m |
1.5 | 12 | 8 | 0.9 | 280 | 12.1 | 0.20 | 23 | 25 | 27 |
2.5 | 13 | 9 | 0.9 | 350 | 7.41 | 0.35 | 31 | 33 | 16 |
4 | 15 | 10 | 0.9 | 450 | 4.61 | 0.57 | 42 | 44 | 10 |
6 | 16 | 11 | 0.9 | 550 | 3.08 | 0.86 | 53 | 56 | 6.8 |
10 | 18 | 13 | 1.25 | 800 | 1.83 | 1.4 | 73 | 78 | 4 |
16 | 21 | 15 | 1.25 | 1110 | 1.15 | 2.2 | 94 | 99 | 2.5 |
25 | 26 | 19 | 1.6 | 1700 | 0.727 | 3.6 | 124 | 131 | 1.65 |
35 | 28 | 22 | 1.6 | 2100 | 0.524 | 5.0 | 154 | 162 | 1.15 |
50* | 30 | 23 | 1.6 | 2400 | 0.387 | 7.1 | 187 | 197 | 0.87 |
70* | 34 | 26 | 1.6 | 3100 | 0.268 | 10.0 | 238 | 251 | 0.6 |
95* | 36 | 29 | 2 | 4100 | 0.193 | 13.6 | 289 | 304 | 0.45 |
120* | 40 | 32 | 2 | 5000 | 0.153 | 17.2 | 335 | 353 | 0.37 |
150* | 45 | 36 | 2.5 | 6300 | 0.124 | 21.4 | 386 | 406 | 0.3 |
185* | 49 | 40 | 2.5 | 7600 | 0.00991 | 26.5 | 441 | 463 | 0.26 |
240* | 54 | 44 | 2.5 | 9600 | 0.0754 | 34.3 | 520 | 546 | 0.21 |
300* | 59 | 49 | 2.5 | 11600 | 0.0601 | 42.9 | 599 | 628 | 0.185 |
400* | 65 | 55 | 2.5 | 14400 | 0.047 | 57.2 | 673 | 728 | 0.165 |
