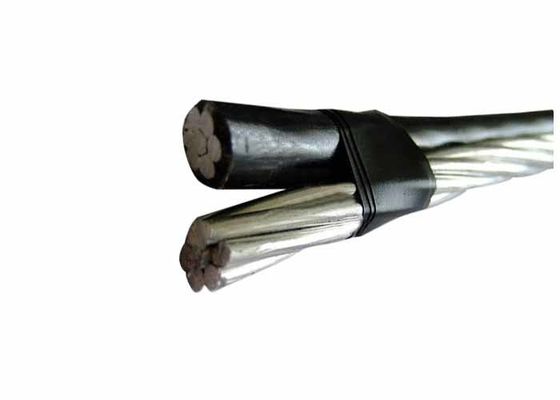

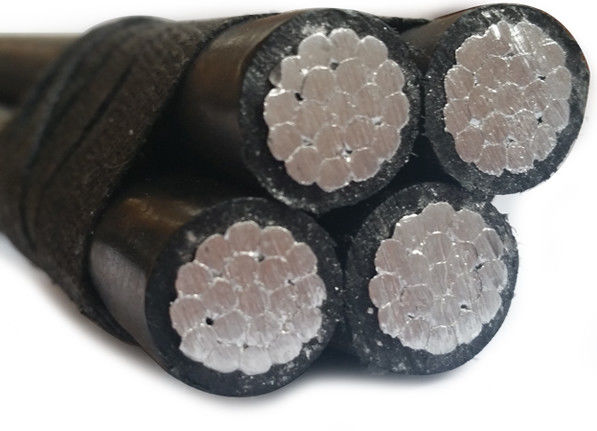

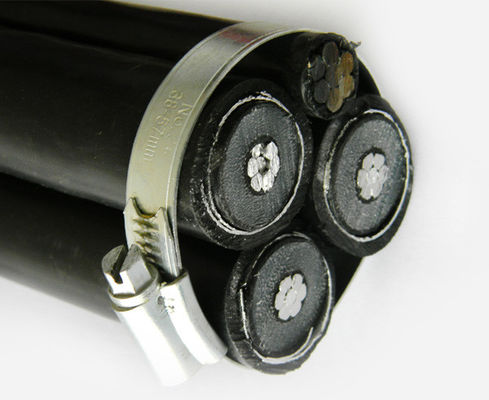

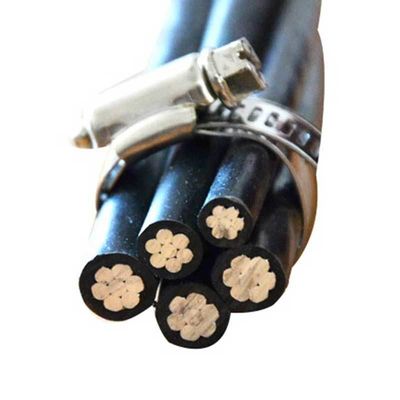

10kv Aerial Bundled Cable

10kv Aerial Bundled Cable

    • 10kv Aerial Bundled Cable
    • 10kv Aerial Bundled Cable
    • 10kv Aerial Bundled Cable
    • 10kv Aerial Bundled Cable
  • 10kv Aerial Bundled Cable

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Conductor: Copper, Aluminum, Aluminum Alloy Insulation: XLPE, PVC, PE
    Colour: Black Or As Your Request Standard: GB/T12527, BS, IEC, ASTM, DIN
    Rated Voltage: 1kv, 10kv, 35kv Packing: Wooden Drum, Steel Wooden Drum, Coil
    High Light:

    1kv Aerial Bundled Cable


    10kv abc power cable


    10kv Aerial Bundled Cable

    10kv Aerial Bundled Cable



    Type of ABC Aerial Bundled Cable


    No. Product Type Application
    1 PVC insulated aerial bundle cable For aerial power transmission
    2 PE insulated aerial bundle cable
    3 XLPE insulated aerial bundle cable
    4 Steel reinforced aluminum wire with PVC insulated aerial b undle cable For aerial power transmission, able to bear moderate pulling force.


    abc cable


    Production Range of ABC Aerial Bundled Cable


    Voltage: 1kv, 10kv, 35kv

    No. of cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2

    Nominal cross sectional area: 10~1500mm2


    aerial bundle cable


    Construction of ABC Aerial Bundled Cable:


    Phase conductor: copper, aluminum, aluminum alloy stranded

    Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), Aluminum conductor steel reinforced(ACSR)

    Insulation: PVC, XLPE, PE


    abc cable

    (Remark: This is just the normal construction. HUANGHE CABLE can also design and produce the cables according to your special requirement.)




    abc cable


    Application of ABC Aerial Bundled Cable:


    Insulated Single Core Aerial Cable

    Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.


    Duplex Service Drop Cable

    To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 °C maximum.


    Triplex Service Drop Cable

    To supply power from the utility’s lines to the consumer’s weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for cross linked insulation.


    Quadruplex Service Drop Cable

    Used to supply 3 phase power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for cross linked polyethylene insulated conductors.


    aerial bundle cable



    600V ABC Aerial Bundled Cable Data


    Number of Cores x Nominal Cross Section Overall Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
    No.×mm² mm Kg/Km Ω/Km kN A
    1x16 RM 8,0 74 1910 2,5 72
    1x25 RM 9,0 106 1200 4,0 107
    1x95 RM 15,4 333 0,320 13,7 240
    1x185 RM 21,0 611 0,164 28,7 389
    1x240 RM 24,0 801 0,125 37,2 467
    2x16 RM 15,6 147 1910 2,5 72
    2x25 RM 18,0 208 1200 4,0 107
    2x70 RM 25,4 505 0,443 10,7 205
    4x16 RM 18,8 286 1910 2,5 72
    4x70 RM 31,8 1.009 0,443 10,7 205
    4x95 RM 37,8 1.332 0,320 13,7 240
    4x70 + 1x25 RM 360 1105 0,443/1,200 10,7/4,0 205/107
    4x70 + 2x25 RM 400 1217 0,443/1,200 10,7/4,0



    aerial bundled cable
