Name: 120mm2 300mm2 Copper Armored 35KV High Voltage Electrical Cable
Brand: OEM

120mm2 300mm2 Copper Armored 35KV High Voltage Electrical Cable

Product Details:

Place of Origin:	china
Brand Name:	OEM
Certification:	ISO/RoHS/CE

Payment & Shipping Terms:

Minimum Order Quantity:	200 meters
Price:	Negotiable
Packaging Details:	wooden drum
Delivery Time:	5-15day
Payment Terms:	L/C, T/T
Supply Ability:	50000meters per week

Contact Now

Detailed Product Description

Insulation Material:	Pvc Or Xlpe	Type:	High Voltage
Application:	Power Station,Industrial ,Underground..etc	Conductor Material:	Copper Or Aluminum
Jacket:	PVC	Product Name:	120mm2 Cable
Armoured:	STA(steel Tape Armoured)	Insulation Color:	Red,blue, White Or As Your Requirement
Certificate:	ISO9001-2008, ISO14001-2004	Key Word:	Price High Voltage Power Cable
Rated Voltage:	1-35KV	Insulation:	XLPE PE PVC
High Light:	120mm2 35KV High Voltage Electrical Cable , 120mm2 High Voltage Electrical Cable , 300mm2 High Voltage Electrical Cable

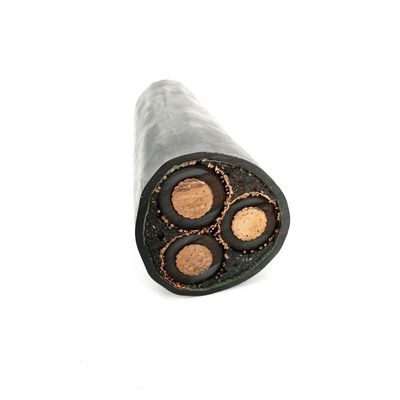

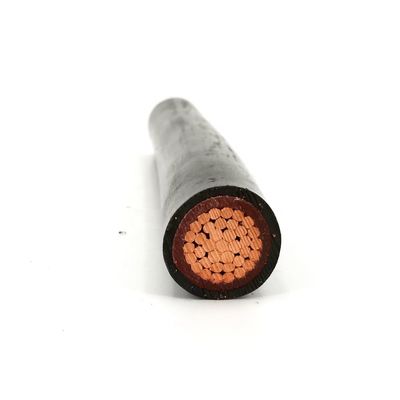

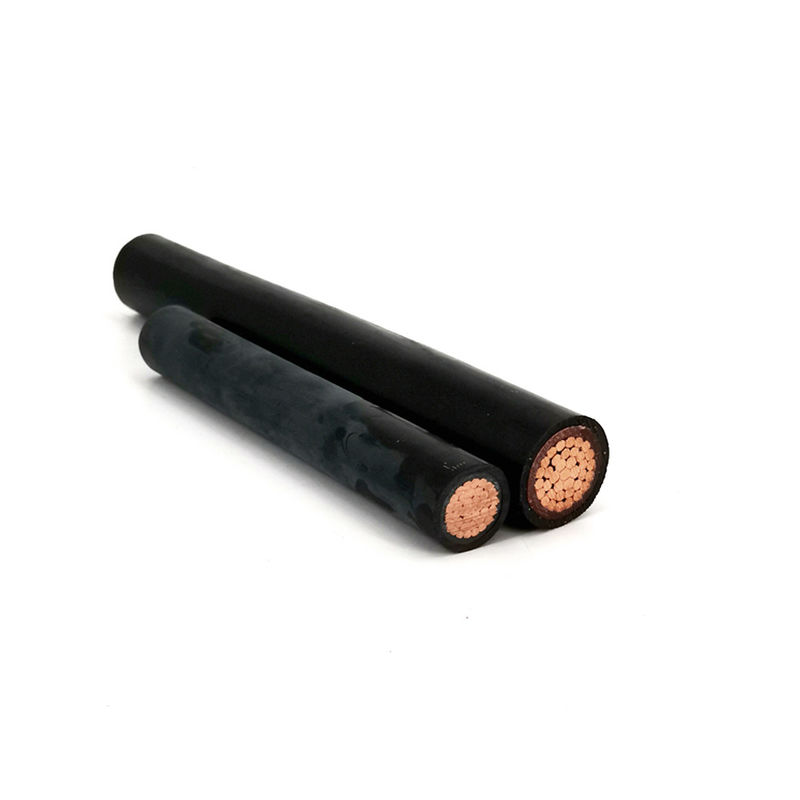

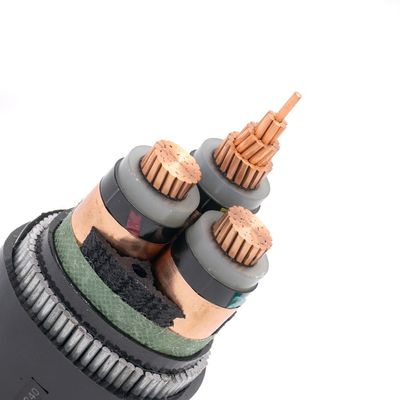

120mm2 300mm2 Copper Armored 35KV High Voltage Electrical Cable

Product Description

Copper Armoured cable is used for AC 35kV and below power distribution circuit,especially for the important places havin high requiremet for cables flame retardancy, like railway, tunnel, power station, petroleum, chemical industry and high building.

1). Conductors: copper or aluminum.
2). Both armored and non-armored type copper power cables are available.
3). Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4). PVC or XLPE sheathed.

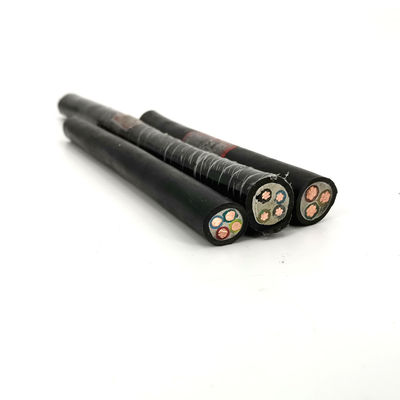

5). Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6). Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

Characteristics

1). Max Long-time operating temperature of PVC insulated copper armoured cable is 70°C,XLPE 90°C
2). Installing temperature of copper armoured cable should not be less than 0°C
3). Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4). Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5). Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.

Power Cable Advantages

1. Occupies a small area. It is usually buried in the soil or laid indoors. In trenches and tunnels, the insulation distance between the lines is small, no towers are used, it occupies less land, and basically does not occupy space on the ground.

2. High reliability. Affected by climatic conditions and surrounding environment, transmission performance is stable and reliability is high.

3. It has more favorable conditions for the development of ultra-high voltage and large capacity, such as low temperature and super-conducting cables.

4. Large distributed capacitance.

5. Low maintenance workload.

6. The possibility of electric shock is small.
