| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor: | Annealed Copper | Insulation: | Polyvinyl Chloride (PVC) Insulated |
|---|---|---|---|
| Outer Sheath: | Polyvinyl Chloride (PVC) Sheathed, LSOH | Armour: | DSTA/SWA/AWA Armored Or Unarmored |
| Rated Voltage: | 0.6/1KV | Cross Section Size: | 0.75mm2-1000mm2 |
| Standards: | IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL | Colour: | Black Or Customized |
| Application: | Construction, Industrial, Underground, Power Station | Feature: | Abrasion-resistant |
| Packing: | Drum, Optional | ||
| High Light: | 1.2kV pvc insulated wire,SWA PVC Insulated Cables,1.2kV PVC Insulated Cables |
||

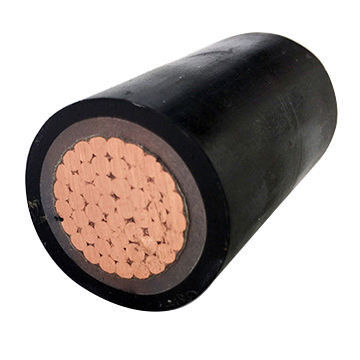

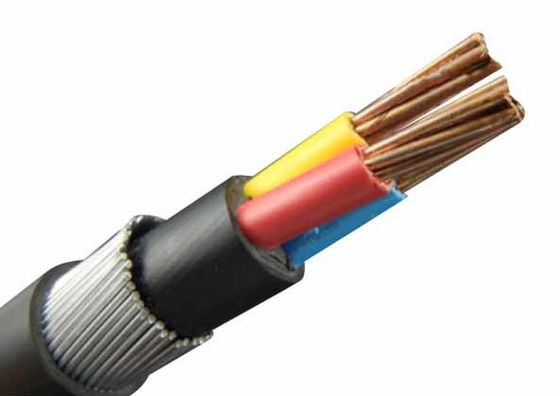

1.2kV SWA AWA Armoured PVC Insulated Cables For Tunnels
PVC Insulated Electrcial Cable Rated Voltage:
0.6/1kv
PVC Insulated Electrical Cable Number of cores:
1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
PVC Insulated Electrcial Cable Application:
PVC cables be laid indoors, in tunnels, cable trenches and pipes. It can also be buried in loose soil. STA Armoured pvc cables could bear mechanical external forces. The single-core cable is not allowed to be laid in the magnetic pipeline which could be directly buried in the ground (buried depth: ≥0.7 m from the ground). SWA and AWA armoured pvc cables could bear large tensile forces.
| Rated Voltage Uo/U | 0.6/1 kV |
| Maximum operating voltage | 1.2 kV |
| Frequence | 50 Hz |
| Test voltage | 3500 V |
|
Permissible operating temperature at conductor |
+60°C |
|
short circuit temperature ( duration max. 5 s) |
160 °C |
|
Minimum installation temperature |
Should not be lower than 0°C |
|
Max. conductor permissible tensile stress |
50 N/mm |
|
Minimum bending radius |
15 x cable Ø |
|
Flame retardant |
IEC60332-1-2 |
Applicable Standards of PVC Insulated Electrical cable
—IEC 60502-1 Design and Test Guidelines
—IEC 60228 Conductor
—IEC 60332-1 Flame Retardant
—IEC 60332-3-24 Flame Retardant Cat. C
PVC Insulated Electrical Cable Types:
| PVC Insulated Cable Types | Description | Cores | Nomi Section Area |
| Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, electric cable |
1 core 2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core |
1.5~1000mm2 |
| Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, electric cable |
||
| Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | 4~1000mm2 | |
| Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | ||
| Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| ZR-Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, flame retardant, electric cable | 1.5~1000mm2 | |
| ZR-Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | 4~1000mm2 | |
| ZR-Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
||
| ZR-Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
PVC Insulated Electrical Cable Technical Data:
| Cross-section of conductor (mm2) | Kind of Conductor | Insulation Thickness (mm) | Sheath Thickness (mm) | Average Max. Outer-diameter (mm) | Product Approximate weight (kg/km) | Conductor copper-wire Max. resistance (Ω/km) | Min. insulation resistance (MΩ.km) | |
| Metal coated | No metal coated | |||||||
| 2×1.5 | 1 | 0.7 | 1.2 | 10 | 84.93 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 10.5 | 89.13 | 12.1 | 12.2 | 0.01 | |
| 2×2.5 | 1 | 0.8 | 1.2 | 11.5 | 116.99 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12 | 124.84 | 7.41 | 7.56 | 0.009 | |
| 2×4 | 1 | 0.8 | 1.2 | 12.5 | 154.02 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13 | 162.49 | 4.61 | 4.7 | 0.0077 | |
| 2×6 | 1 | 0.8 | 1.2 | 13.5 | 201.43 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.2 | 14 | 211.74 | 3.08 | 3.11 | 0.0065 | |
| 2×10 | 1 | 1 | 1.4 | 16.5 | 342.84 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 17.5 | 354.15 | 1.83 | 1.84 | 0.0065 | |
| 2×16 | 2 | 1 | 1.4 | 20 | 481.24 | 1.15 | 1.16 | 0.0052 |
| 2×25 | 2 | 1.2 | 1.4 | 24 | 717.82 | 0.727 | 0.734 | 0.005 |
| 2×35 | 2 | 1.2 | 1.6 | 27.5 | 955.57 | 0.524 | 0.529 | 0.0044 |
| 3×1.5 | 1 | 0.7 | 1.2 | 10.5 | 105.86 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 11 | 110.82 | 12.1 | 12.2 | 0.01 | |
| 3×2.5 | 1 | 0.8 | 1.2 | 12 | 149.34 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12.5 | 159.02 | 7.41 | 7.56 | 0.009 | |
| 3×4 | 1 | 0.8 | 1.2 | 13 | 201.04 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13.5 | 211.19 | 4.61 | 4.7 | 0.0077 | |
| 3×6 | 1 | 0.8 | 1.4 | 14.5 | 278.69 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 15.5 | 291.56 | 3.08 | 3.11 | 0.0065 | |
| 3×10 | 1 | 1 | 1.4 | 17.5 | 457.6 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 19.5 | 472.47 | 1.83 | 1.84 | 0.0065 | |
| 3×16 | 2 | 1 | 1.4 | 21.5 | 652.85 | 1.15 | 1.16 | 0.0052 |
| 3×25 | 2 | 1.2 | 1.4 | 26 | 985.18 | 0.727 | 0.734 | 0.005 |
| 3×35 | 2 | 1.2 | 1.6 | 29 | 1316.42 | 0.524 | 0.529 | 0.0044 |
| 4×1.5 | 1 | 0.7 | 1.2 | 11.5 | 129.92 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12 | 137.02 | 12.1 | 12.2 | 0.01 | |
| 4×2.5 | 1 | 0.8 | 1.2 | 13 | 185.91 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 13.5 | 199.73 | 7.41 | 7.56 | 0.009 | |
| 4×4 | 1 | 0.8 | 1.4 | 14.5 | 264.06 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 15 | 280 | 4.61 | 4.7 | 0.0077 | |
| 4×6 | 1 | 0.8 | 1.4 | 16 | 352.25 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 17 | 372.18 | 3.08 | 3.11 | 0.0065 | |
| 4×10 | 1 | 1 | 1.4 | 19 | 589.31 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 20.5 | 614.24 | 1.83 | 1.84 | 0.0065 | |
| 4×16 | 2 | 1 | 1.4 | 23.5 | 848.16 | 1.15 | 1.16 | 0.0052 |
| 4×25 | 2 | 1.2 | 1.6 | 27.5 | 1309.68 | 0.727 | 0.734 | 0.005 |
| 4×35 | 2 | 1.2 | 1.6 | 32 | 1724.19 | 0.524 | 0.529 | 0.0044 |
| 5×1.5 | 1 | 0.7 | 1.2 | 12 | 155.09 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12.5 | 163.63 | 12.1 | 12.2 | 0.01 | |
| 5×2.5 | 1 | 0.8 | 1.2 | 14 | 223.98 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 14.5 | 240.8 | 7.41 | 7.56 | 0.009 | |
| 5×4 | 1 | 0.8 | 1.4 | 16 | 319.08 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 17 | 338.37 | 4.61 | 4.7 | 0.0077 | |
| 5×6 | 1 | 0.8 | 1.4 | 17.5 | 428.24 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 18.5 | 452.4 | 3.08 | 3.11 | 0.0065 | |
| 5×10 | 1 | 1 | 1.4 | 21 | 721.03 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 22 | 750.19 | 1.83 | 1.84 | 0.0065 | |
| 5×16 | 2 | 1 | 1.6 | 26 | 1063.16 | 1.15 | 1.16 | 0.0052 |
| 5×25 | 2 | 1.2 | 1.6 | 31.5 | 1612.39 | 0.727 | 0.734 | 0.005 |
| 5×35 | 2 | 1.2 | 1.6 | 35 | 2127.77 | 0.524 | 0.529 | 0.0044 |
