| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor: | Copper Or Aluminum | Insulation: | Polyvinyl Chloride (PVC) Insulated |
|---|---|---|---|
| Outer Sheath: | Polyvinyl Chloride (PVC) Sheathed | Armor: | DSTA/SWA/AWA Armored Or Unarmored |
| Rated Voltage: | 0.6/1KV | Cross Section Area: | 0.75mm2-1000mm2 |
| Standard: | IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL | Color: | Black Or Customized |
| Application: | Construction, Industrial, Underground, Power Station | Feature: | Abrasion-resistant |
| High Light: | 1.5mm2 pvc insulated wire,1.5mm2 PVC Insulated Cables,2.5mm2 PVC Insulated Cables |
||

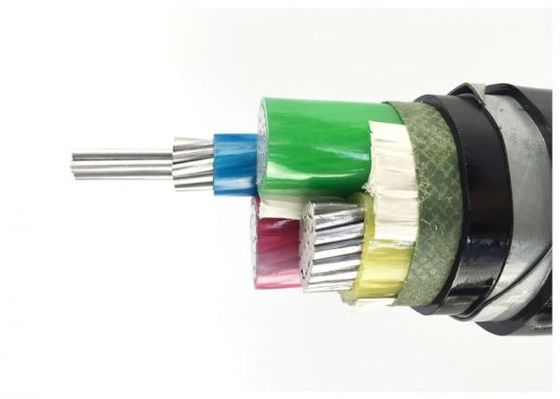

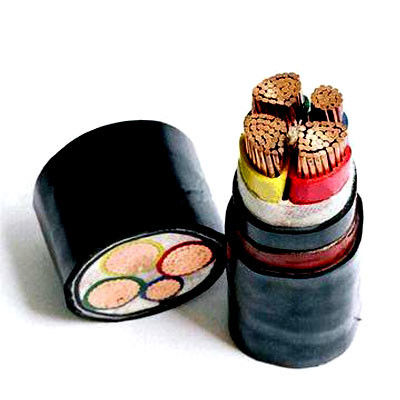

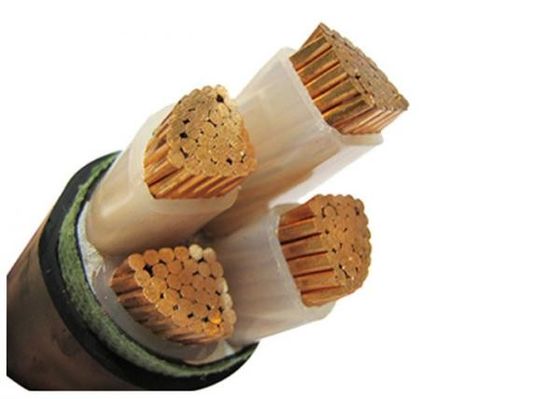

1.5mm2 2.5mm2 Abrasion Resistant PVC Insulated Cables
Rated Voltage:
0.6/1kv
Number of cores:
1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
PVC Insulated Electrcial Cable Application:
PVC insulated cable is suitable for laying at the fixed places. It is widely used in electric line distribution and power transmission with AC rated voltage up to and including 1KV.
PVC Insulated Electrcial Cable Service Performance:
1) Rated voltage: 0.6/1KV
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius:
Bending radius≥4D as cable overall diameter≤25mm
Bending radius≥6D as cable overall diameter>25mm
PVC Insulated Electrical Cable Types:
| PVC Insulated Cable Types | Description | Cores | Nomi Section Area |
| Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, electric cable |
1 core 2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core |
1.5~1000mm2 |
| Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, electric cable |
||
| Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | 4~1000mm2 | |
| Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | ||
| Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| ZR-Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, flame retardant, electric cable | 1.5~1000mm2 | |
| ZR-Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | 4~1000mm2 | |
| ZR-Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
||
| ZR-Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
PVC Insulated Electrical Cable Technical Data:
| Cross-section of conductor (mm2) | Kind of Conductor | Insulation Thickness (mm) | Sheath Thickness (mm) | Average Max. Outer-diameter (mm) | Product Approximate weight (kg/km) | Conductor copper-wire Max. resistance (Ω/km) | Min. insulation resistance (MΩ.km) | |
| Metal coated | No metal coated | |||||||
| 2×1.5 | 1 | 0.7 | 1.2 | 10 | 84.93 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 10.5 | 89.13 | 12.1 | 12.2 | 0.01 | |
| 2×2.5 | 1 | 0.8 | 1.2 | 11.5 | 116.99 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12 | 124.84 | 7.41 | 7.56 | 0.009 | |
| 2×4 | 1 | 0.8 | 1.2 | 12.5 | 154.02 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13 | 162.49 | 4.61 | 4.7 | 0.0077 | |
| 2×6 | 1 | 0.8 | 1.2 | 13.5 | 201.43 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.2 | 14 | 211.74 | 3.08 | 3.11 | 0.0065 | |
| 2×10 | 1 | 1 | 1.4 | 16.5 | 342.84 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 17.5 | 354.15 | 1.83 | 1.84 | 0.0065 | |
| 2×16 | 2 | 1 | 1.4 | 20 | 481.24 | 1.15 | 1.16 | 0.0052 |
| 2×25 | 2 | 1.2 | 1.4 | 24 | 717.82 | 0.727 | 0.734 | 0.005 |
| 2×35 | 2 | 1.2 | 1.6 | 27.5 | 955.57 | 0.524 | 0.529 | 0.0044 |
| 3×1.5 | 1 | 0.7 | 1.2 | 10.5 | 105.86 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 11 | 110.82 | 12.1 | 12.2 | 0.01 | |
| 3×2.5 | 1 | 0.8 | 1.2 | 12 | 149.34 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12.5 | 159.02 | 7.41 | 7.56 | 0.009 | |
| 3×4 | 1 | 0.8 | 1.2 | 13 | 201.04 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13.5 | 211.19 | 4.61 | 4.7 | 0.0077 | |
| 3×6 | 1 | 0.8 | 1.4 | 14.5 | 278.69 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 15.5 | 291.56 | 3.08 | 3.11 | 0.0065 | |
| 3×10 | 1 | 1 | 1.4 | 17.5 | 457.6 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 19.5 | 472.47 | 1.83 | 1.84 | 0.0065 | |
| 3×16 | 2 | 1 | 1.4 | 21.5 | 652.85 | 1.15 | 1.16 | 0.0052 |
| 3×25 | 2 | 1.2 | 1.4 | 26 | 985.18 | 0.727 | 0.734 | 0.005 |
| 3×35 | 2 | 1.2 | 1.6 | 29 | 1316.42 | 0.524 | 0.529 | 0.0044 |
| 4×1.5 | 1 | 0.7 | 1.2 | 11.5 | 129.92 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12 | 137.02 | 12.1 | 12.2 | 0.01 | |
| 4×2.5 | 1 | 0.8 | 1.2 | 13 | 185.91 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 13.5 | 199.73 | 7.41 | 7.56 | 0.009 | |
| 4×4 | 1 | 0.8 | 1.4 | 14.5 | 264.06 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 15 | 280 | 4.61 | 4.7 | 0.0077 | |
| 4×6 | 1 | 0.8 | 1.4 | 16 | 352.25 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 17 | 372.18 | 3.08 | 3.11 | 0.0065 | |
| 4×10 | 1 | 1 | 1.4 | 19 | 589.31 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 20.5 | 614.24 | 1.83 | 1.84 | 0.0065 | |
| 4×16 | 2 | 1 | 1.4 | 23.5 | 848.16 | 1.15 | 1.16 | 0.0052 |
| 4×25 | 2 | 1.2 | 1.6 | 27.5 | 1309.68 | 0.727 | 0.734 | 0.005 |
| 4×35 | 2 | 1.2 | 1.6 | 32 | 1724.19 | 0.524 | 0.529 | 0.0044 |
| 5×1.5 | 1 | 0.7 | 1.2 | 12 | 155.09 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12.5 | 163.63 | 12.1 | 12.2 | 0.01 | |
| 5×2.5 | 1 | 0.8 | 1.2 | 14 | 223.98 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 14.5 | 240.8 | 7.41 | 7.56 | 0.009 | |
| 5×4 | 1 | 0.8 | 1.4 | 16 | 319.08 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 17 | 338.37 | 4.61 | 4.7 | 0.0077 | |
| 5×6 | 1 | 0.8 | 1.4 | 17.5 | 428.24 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 18.5 | 452.4 | 3.08 | 3.11 | 0.0065 | |
| 5×10 | 1 | 1 | 1.4 | 21 | 721.03 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 22 | 750.19 | 1.83 | 1.84 | 0.0065 | |
| 5×16 | 2 | 1 | 1.6 | 26 | 1063.16 | 1.15 | 1.16 | 0.0052 |
| 5×25 | 2 | 1.2 | 1.6 | 31.5 | 1612.39 | 0.727 | 0.734 | 0.005 |
| 5×35 | 2 | 1.2 | 1.6 | 35 | 2127.77 | 0.524 | 0.529 | 0.0044 |
