| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Construction: | Copper Conductor :bare ,single-wired | Insulation: | VPE |
|---|---|---|---|
| Shielding: | Aluminum Foil Screening, | Sheath :: | Halogen Free Polymer |
| Name: | Halogen Free Cable | Nominal Voltage: | 300/500v |
| High Light: | 1.5mm2 LV Power Cables,1.5mm2 low voltage electrical cable,2.5mm2 LV Power Cables |
||

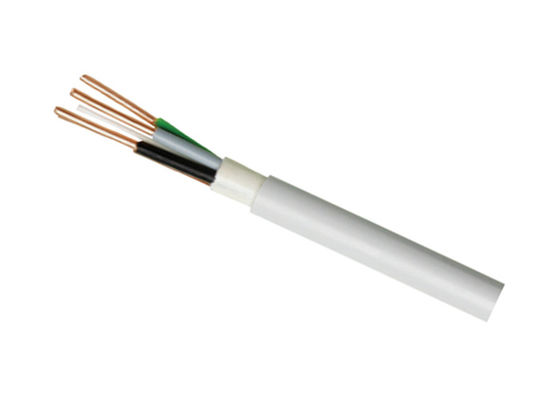

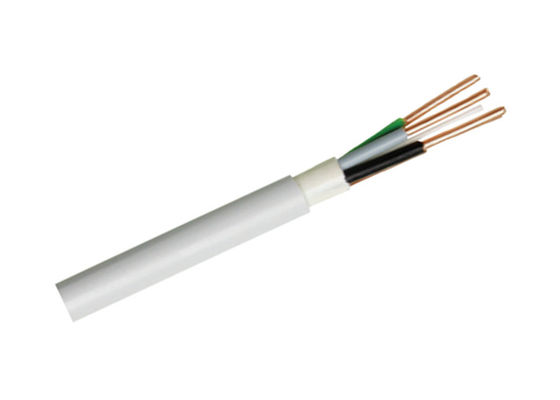

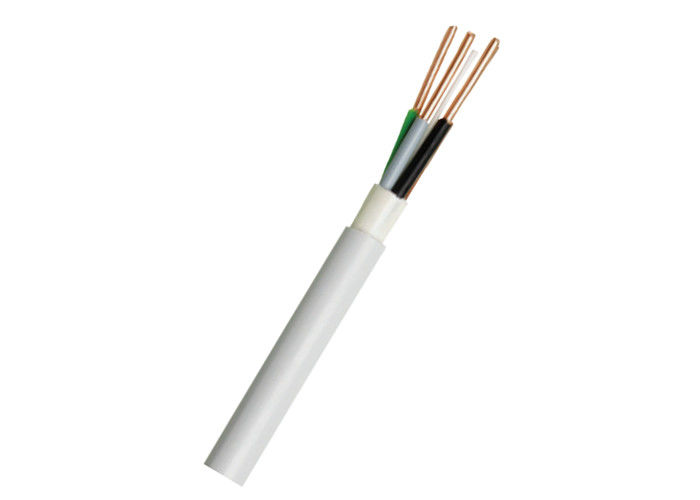

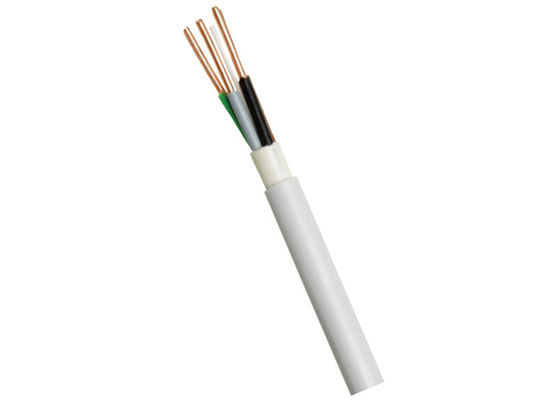

1.5mm2 LV Power Cables
Application
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster, not for underground installation. this is especially used in buildings with a high concentration of persons or valuable property, where improved fire characteristics are needed. Outdoor usage is only possible, as long as the cable is protected against direct UV-sunlight.
This product conform to 2006/95/EG directive(low voltage directive)
Construction
Copper conductor: plain, single-or multi-wired
Insulation: cross-linked polyethylene compound
Stranding: stranded cores, filling compound
Sheath: halogen free thermoplastic polymer compound
Technical data
Nominal voltage 300/500v
Test voltage: 2000v
Continuous conductor temperature: max.70℃
Minimum bending radius in fixed condition: 4*cable diameter
| Section mm2 |
Colour | Copper content kg/km |
| NHXMH-J 1 x 1,5 re 3 x 1,5 re 4 x 1,5 re 5 x 1,5 re 7 x 1,5 re 10 x 1,5 re 12 x 1,5 re 16 x 1,5 re 21 x 1,5 re 24 x 1,5 re 1 x 2,5 re 3 x 2,5 re 4 x 2,5 re 5 x 2,5 re 7 x 2,5 re 1 x 4 re 3 x 4 re 4 x 4 re 5 x 4 re 1 x 6 re 3 x 6 re 4 x 6 re 5 x 6 re 1 x 10 re 3 x 10 re 4 x 10 re 5 x 10 re 1 x 16 rm 4 x 16 rm 5 x 16 rm 4 x 25 rm 5 x 25 rm 4 x 35 rm NHXMH-O 1 x 1,5 re 2 x 1,5 re |
gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr |
14,4 43,0 58,0 72,0 101,0 144,0 173,0 230,0 302,0 346,0 24,0 72,0 96,0 120,0 168,0 38,0 115,0 154,0 192,0 58,0 173,0 230,0 288,0 96,0 288,0 384,0 480,0 154,0 614,0 768,0 960,0 1200,0 1344,0 14,4 29,0 |
