Place of Origin: | china |
Brand Name: | OEM |
Certification: | ISO/RoHS/CE |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | wooden drum |
Delivery Time: | 5-15day |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000meters per week |
Conductor: | Class 5 Flexible Copper Conductor | Insulation: | Rubber |
---|---|---|---|
Sheath: | Rubber | ||
High Light: | 6mm2 Armoured Power Cables,2.5mm2 Armoured Power Cables,4mm2 Armoured Power Cables |

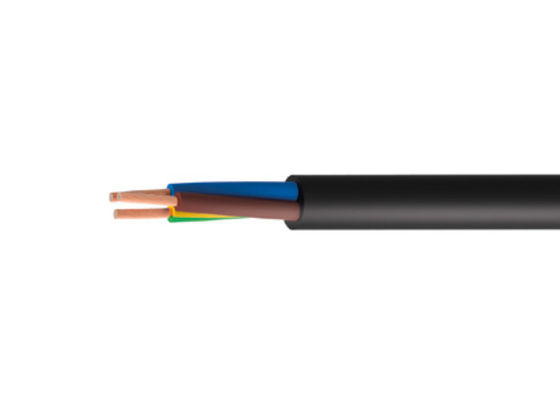

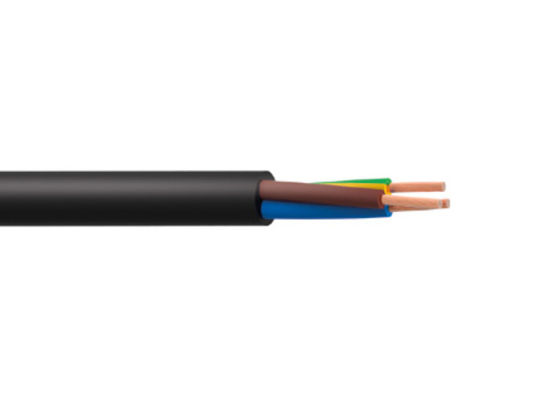

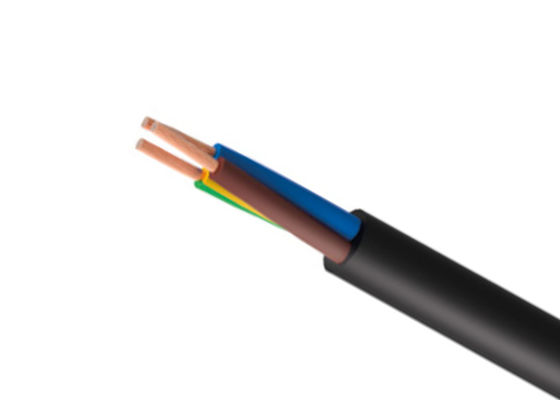

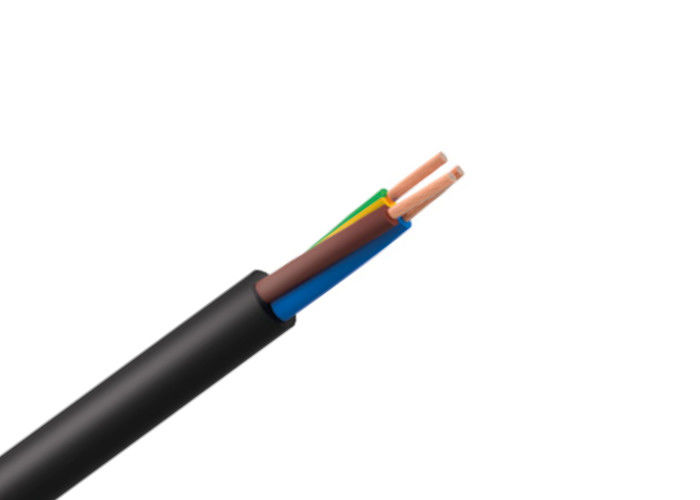

1.5mm 3 Core Rubber Sheath Armoured Power Cables
APPLICATION:
For installation in dry, damp or wet environments, in workshops with explosive atmospheres: it can be immersed in fresh water up to 10 meters depth and therefore it could be used as energy supply cable for submersed pumps. It is not suitable for underwater power transmission or installation in a waterway or where it is possible that mechanical damage might occur and cause hazard. For connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites; also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc. Suitable for applications up to 1000V for adequately protected fixed installations (i.e. inside pipes or equipment) as well as for rotor connections to lifting equipment motors.

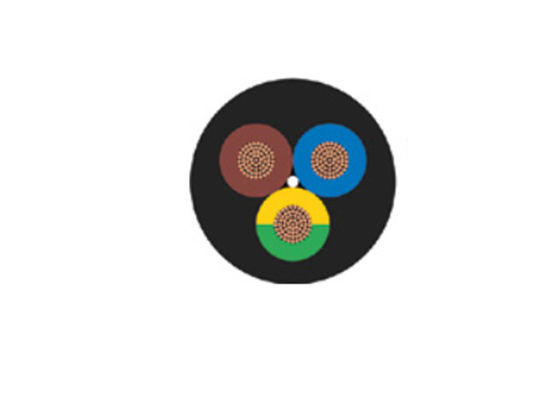

CONSTRUCTION:
Conductor
Class 5 flexible copper conductor according to VDE 0295
Insulation
Rubber Type EI4 according to VDE 0282
Sheath
Rubber Type EM2 according to VDE 0282
CHARACTERISTICS:
Voltage Rating (Uo/U)
450/750V
Test Voltage
2.5kV
Temperature Rating
Fixed: -40°C to +60°C
Flexed: -15°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Short Circuit Temperature
+250°C
Sheath Colour
Black
DIMENSIONS:
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
CONDUCTOR DIAMETER mm |
MINIMUM OVERALL DIAMETER mm. |
MAXIMUM OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
1 1 1 1 1 1 1 1 1 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 7 7 12 12 18 24 36 |
1.5 2.5 4 6 10 16 25 35 50 1.5 2.5 4 6 10 16 25 35 50 1 1.5 2.5 4 6 10 16 25 35 1.5 2.5 1.5 2.5 1.5 1.5 1.5 |
1.5 1.9 2.4 3 3.9 4.9 6.1 7.3 8.9 1.5 1.9 2.4 3 3.9 4.9 6.1 7.3 8.9 1.2 1.5 1.9 2.4 3 3.9 4.9 6.1 7.3 1.5 1.9 1.5 1.9 1.5 1.5 1.5 |
5.7 6.3 7.2 7.9 9.5 10.8 12.7 14.3 16.5 9.2 10.9 12.7 14.1 19.1 21.8 26.1 29.3 34.1 9.2 10.2 12.1 14 15.7 20.9 23.8 28.9 32.5 15 17.5 17.6 20.6 20.7 24.3 27.8 |
7.1 7.9 9 9.8 11.9 13.4 15.8 17.9 20.6 11.9 14 16.2 18 24.2 27.6 33 37.1 42.9 11.9 13.1 15.5 17.9 20 26.5 30.1 36.6 41.1 19 21.5 22.4 26.2 26.3 30.7 35.2 |
50 70 100 130 200 280 400 510 710 150 210 280 370 660 920 1360 1820 2500 150 190 260 350 460 830 1190 1720 2260 340 500 530 720 700 960 1360 |
