| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Insulation Material: | XLPE | Type: | Medium Voltage |
|---|---|---|---|
| Application: | Construction | Conductor Material: | Aluminum |
| Jacket: | PVC | Conductor Screen: | Extruded Semi-conductive Compound |
| Insulation Screen: | Extruded Semi-conductive Compound | Metallic Screen: | Copper Tape Or Copper Wire |
| Jacket Color: | Black | No. Of Cores: | 1 |
| Nominal Cross Sectional Area Of Conducto: | 25~630mm2 | Rated Voltage: | 33kV |
| Design Standard: | IEC 60502-2, IEC 60228 Etc. | Product Keywords: | Underground Cable Aluminum Cable |
| High Light: | 33kV High Voltage Underground Cable,single core High Voltage Underground Cable,XLPE High Voltage Underground Cable |
||

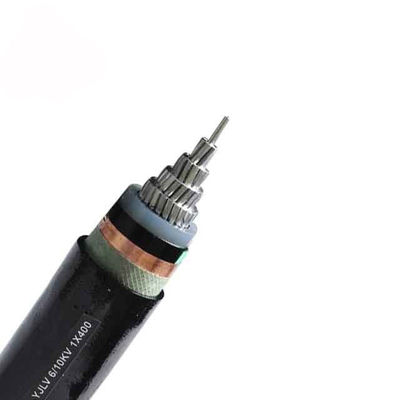

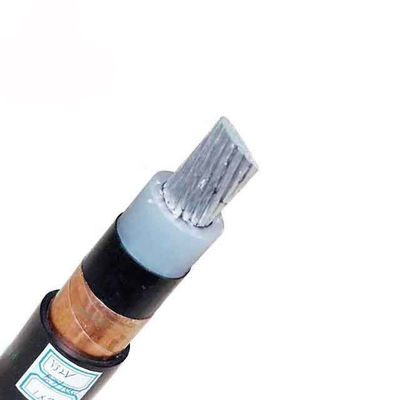

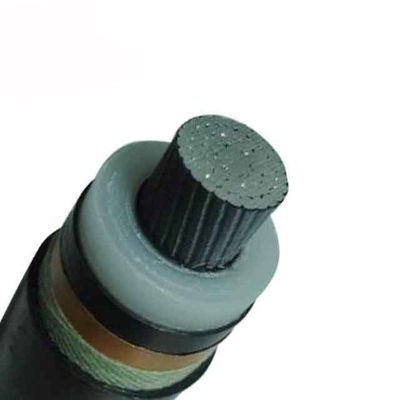

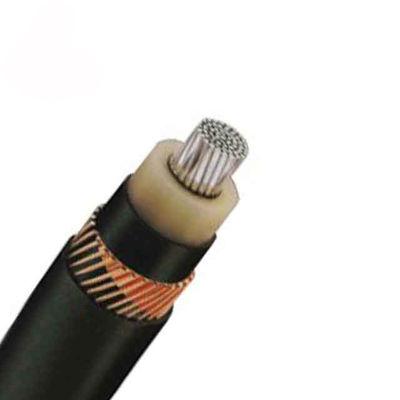

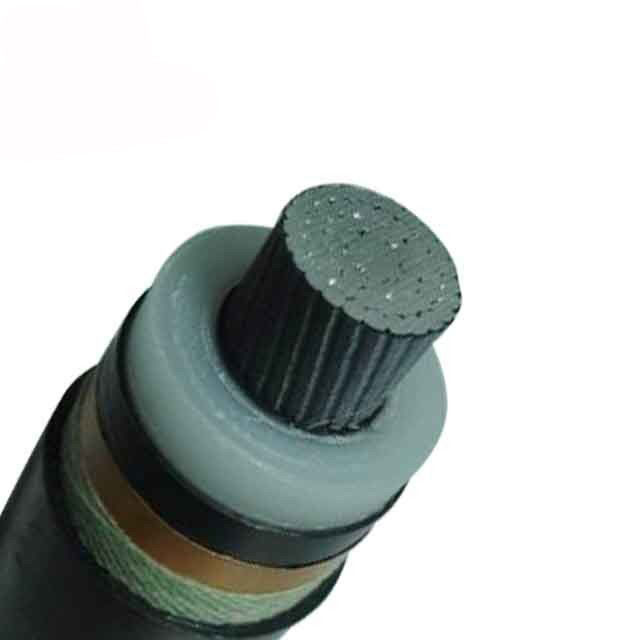

33kv High Voltage Underground Cable
Main Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Construction
Conductor: Plain annealed stranded compacted circular aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulaton Screen: Extruded semi-conductive compound
Metallic Screen: Copper tape or Copper Wire
Outer Jacket (Sheath): PVC type ST2 to IEC 60502
Technical Parameter of 33kV Al / XLPE / PVC 1C Power Cable
| Aluminum Conductor | Conductor Screen | Insulation | Insulation Screen | Copper Tape Screen | Outer Sheath | |||
| Nominal Cross Sectional Area | Diameter | Thinkness | Thinkness | Thinkness | Width | Layer No. | Thinkness | Thinkness |
| mm² | mm | mm | mm | mm | mm | mm | mm | mm |
| 25 | 6 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 35 | 7 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 50 | 8 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 70 | 10 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 95 | 12 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 120 | 13 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 150 | 15 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 185 | 16 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 240 | 18 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 300 | 21 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 400 | 24 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 500 | 27 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
Our Services
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
