35KV XLPE Power Cables

35KV XLPE Power Cables

    • 35KV XLPE Power Cables
    • 35KV XLPE Power Cables
    • 35KV XLPE Power Cables
  • 35KV XLPE Power Cables

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Conductor: Copper Or Aluminum Insulation: Crosslinked Polyethylene (XLPE)
    Armour: DSTA/SWA/AWA Armoured Or Unarmoured Sheath: Polyvinyl Chloride (PVC)
    Voltage: 3.6KV To 35KV Core: 1 Core, 3 Core
    Standard: BS/IEC/ASTM/DIN Application: Industrial, Underground, Construction Etc.
    High Light:

    35KV XLPE Power Cables

    ,

    Medium Voltage XLPE Power Cables

    ,

    35KV mv xlpe cable

    35KV XLPE Power Cables





    1. Medium Voltage XLPE Insulated Electrical Cable Application:

    The voltage of MV XLPE electrical cable is up to 35KV. The xlpe cable has many characteristics such as high electric strength, mechanical strength, anti-chemical corrosion etc. So the xlpe cables has been used in indoor, tunnel, canal, power plant etc. for power distribution.

    2. Rated Voltage of Medium Voltage XLPE Insulated Electrical Cable:

    3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV

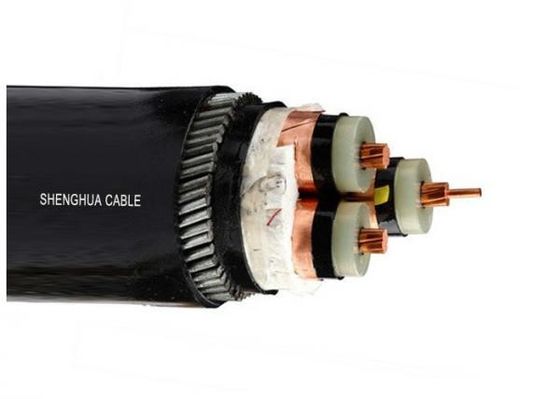

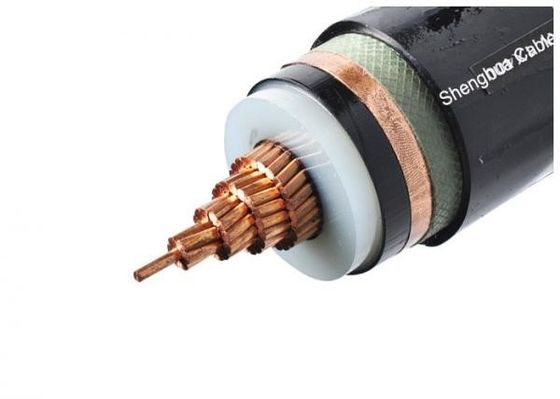

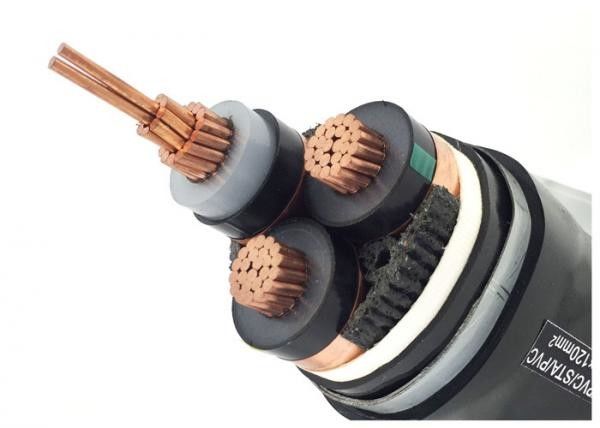

    3. Construction of Medium Voltage XLPE Insulated Electrical Cable:

    Conductor: Copper or Aluminum
    Insulation: Crosslinked Polyethylene (XLPE)
    Inner sheath: Polyvinyl Chloride (PVC)
    Armour: Double Steel Tape (DSTA), Galvanized Steel Wire (SWA), Aluminum Wire Armoured (AWA)
    Outer Sheath: Polyvinyl Chloride (PVC)




    Medium Voltage XLPE Insulated Electrical Cable
    XLPE Cable Types Description Cores Nomi Section Area (mm2)
    Cu/XLPE/PVC copper core, xlpe insulated, pvc sheathed, electrical cable

    1 core

    3 core



    25, 35,
    50, 70,
    95, 120,
    150, 185,
    240, 300,
    400, 500, 630, 800, 1000

    Al/XLPE/ PVC aluminum core, xlpe insulated, pvc sheathed, electrical cable
    Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable
    Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable
    Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable
    Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable


    4. Characters of Medium Voltage XLPE Insulated Electrical Cable:

    a. Max. Long-time operating temperature: 90°C
    b. Max. short-circuit temperature: not exceed 250°C in 5 Second
    c. Installing temperature of cable: not less than 0°C
    d. Unable be laid without the limit of fall with enough mechanical pull. Single core cable can not be laid in iron tube or fixed by circled iron tools around cables.


    mediium voltage xlpe electrical cable
