| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor Material: | CU AL | Packing: | Wooden(Steel) Drum, Steel-wooden Drums |
|---|---|---|---|
| Name: | Aerial Bundle Cable | Type: | Low Voltage, Medium Voltage, High Voltage |
| Standard: | IEC60502,GB/T12527,BS IEC ASTM DIN,ASTM,BS | Conductor: | Alulminum,AAC,ACSR,COPPER,Alulminum Or Copper |
| Key Word: | ABC Cable,high Quality With Good Price | Package: | Paper/wodden Reel Or Plastic Shrink,Wooden Durm |
| Sample: | Free,offered | ||
| High Light: | 35mm2 air bunched cable,50mm2 air bunched cable,35mm2 Aerial Bundled Cable |
||

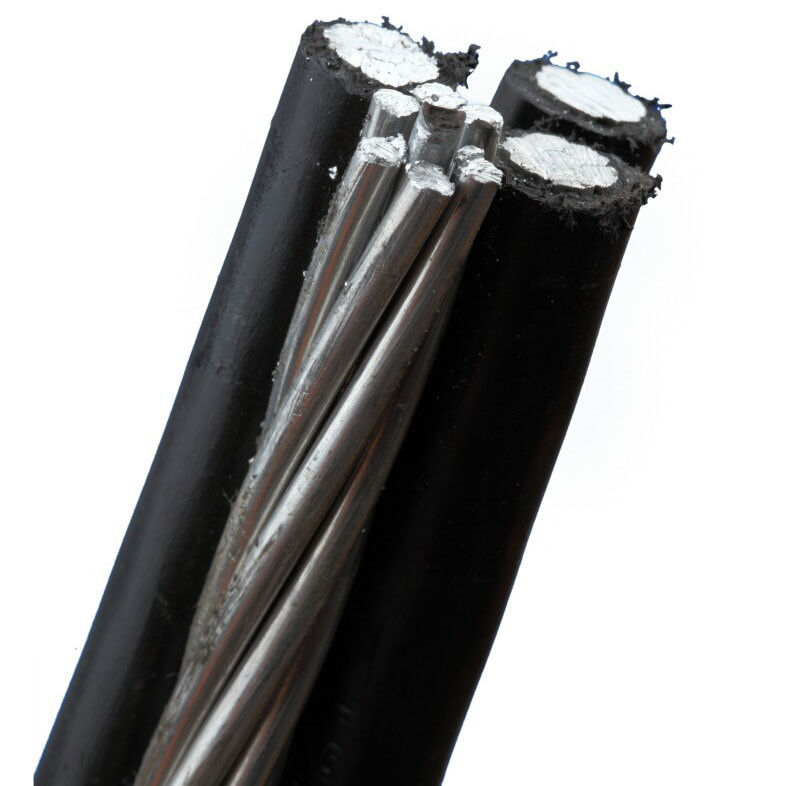

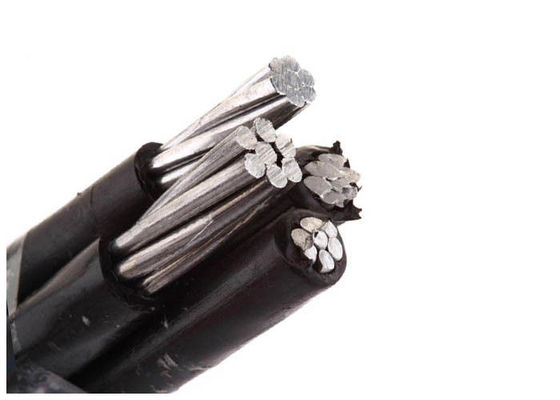

35mm2 Air Bunched Cable
Applications:
a. Max operating temperature :XLPE insulation 90°C,High-density PE insulation 75°C,PVC insulation 70°C.
b. Installing temperature of cable should not be below -20°C.
c. Max short-circuit temperature,Not more than5 Sec:XLPE insulation 250°C,High-density PE insulation 150°C,PVC insulation 130°C.
d. Permissible Bending radius of cable:Should be not less than 20(d+D)±5%mm. Where:D is overall diameter of cable; d is diameter of conductor.
Type and Name:
All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.
AAC conductors can be installed in air. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
| ABC cable | |
| 16 mm 2 * 2C | ( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 |
| 16 mm 2 * 4C | 3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 |
| 25 mm 2 * 2C | ( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 |
| 25 mm 2 * 4C | 3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 |
| 35 mm 2 * 2C | ( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 |
| 35 mm 2 * 4C | 3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 |
| 50 mm 2 * 2C | ( AL19/1.78+PE O.D.11.7) + AL19/1.78 |
| 50 mm 2 * 4C | 3*(AL19/1.78+PE O.D.11.7) + AL19/1.78 |
| 70 mm 2 * 2C | ( AL19/2.12+PE O.D.13.5) + AL19/2.12 |
| 70 mm 2 * 4C | 3*(AL19/2.12+PE O.D.13.5) + AL19/2.12 |
| 95 mm 2 * 2C | ( AL19/2.50+PE O.D.15.8) + AL19/2.50 |
| 95 mm 2 * 4C |
3*(AL19/2.50+PE O.D.15.8) + AL19/2.50 |
Constructions:
Conductor: Solid or stranded copper,aluminum
Insulation: Cross-linked polyethylene( XLPE or PVC)
Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: Aluminum wire/steel wire armour
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum
Technical Data:
| TECHNICAL PARAMETERS SHEET | |||
| No. | Description | Unit | Data |
| 1 | Manufacturer | Huanghe Cable Group | |
| 2 | Country of manufacturer | China | |
| 3 | Code Name | Condor | |
| 4 | Aluminum Area | mm2 | 402.84 |
| 4 | Steel Area | mm2 | 52.19 |
| 5 | Total Area | mm2 | 455.03 |
| 6 | Aluminum Stranding & Wire Diameter | mm | 54/3.08 |
| 6 | Steel Stranding & Wire Diameter | mm | 7/3.08 |
| 7 | Approximate Overall Diameter | mm | 27.72 |
| 8 | Approximate Weight | kg/km | 1520.7 |
| 9 | Breaking Load | KN | 125.4 |
| 10 | DC Resistance @ 20°C | Ohm/km | 0.07192 |
| 11 | Current Rating | A | 614 |
