| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Product Name: | Low Smoke Halogen Free Cable | Application: | Electric Transmission And Distribution Control Systems |
|---|---|---|---|
| Tape: | Wrapping Tape | Rated Voltage: | 0.6/1kV |
| Free Sample: | Yes | Color: | Orange Or Customized |
| Standard: | IEC60228 IEC60331,60332 | Type: | XLPE LSZH Cable |
| High Light: | 16mm2 low smoke halogen free cable,25mm2 Low Smoke Zero Halogen Cable,35mm2 Low Smoke Zero Halogen Cable |
||

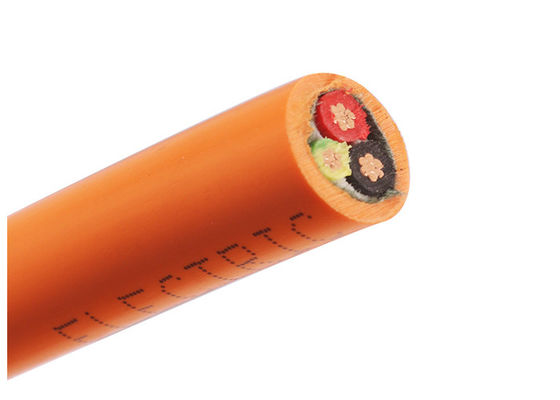

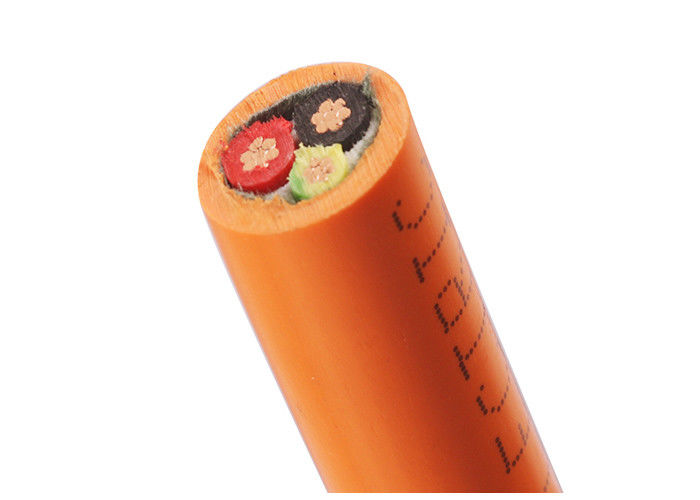

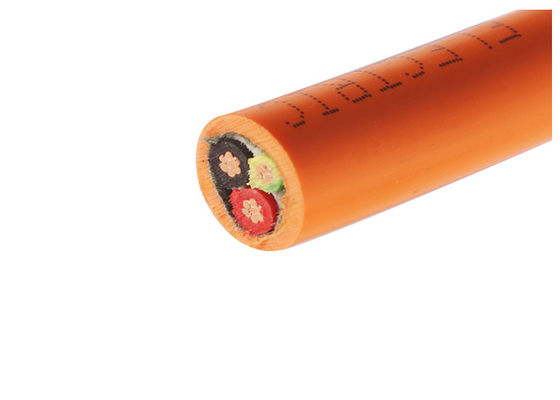

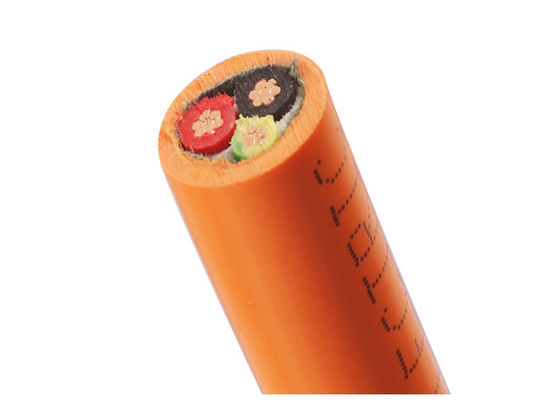

3 Core 16mm2 25mm2 35mm2 Low Smoke Zero Halogen Cable
Low Smoke Halogen Free Cable Constructions
1. Copper or aluminum conductor
2. PE or XLPE insulation
3. Filler
4. Wrapping tape
Low Smoke Halogen Free Cable Technical data
Rated voltage: 0.6-1KV
Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%
| Type | Description | Cores | Nominal Cross Section |
| WDZAN-YJY23 WDZBN-YJY23 WDZCN-YJY23 | Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZAN-YJY33 WDZBN-YJY33 WDZCN-YJY33 | Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZAN-YJLY WDZBN-YJLY WDZCN-YJLY | Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZAN-YJLY23 WDZBN-YJLY23 WDZCN-YJLY23 | Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZAN-YJLY33 WDZBN-YJLY33 WDZCN-YJY33 | Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
Low Smoke Halogen Free Cable Specification:
Details
Packing:
