5 Core Low Voltage Underground Cable
Product Details:
| Place of Origin: |
china |
| Brand Name: |
OEM |
| Certification: |
ISO/RoHS/CE |
Payment & Shipping Terms:
| Minimum Order Quantity: |
200 meters |
| Price: |
Negotiable |
| Packaging Details: |
wooden drum |
| Delivery Time: |
5-15day |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
50000meters per week |
Contact Now
Detailed Product Description
| Insulation Material: |
XLPE |
Type: |
Low Voltage |
| Application: |
LV Electric Power Cables |
Conductor Material: |
Copper |
| Jacket: |
PVC |
Conductor: |
Cu |
| Core Number: |
5 |
Insulation: |
XLPE/PE/PVC |
| Dia: |
70mm2 |
Outer Sheath: |
PVC |
| Rated Voltage: |
0.6/1KV |
| Highlight: |
70mm2 Low Voltage Underground Cable, 70mm2 lv armoured cable, 5 Core Low Voltage Underground Cable |

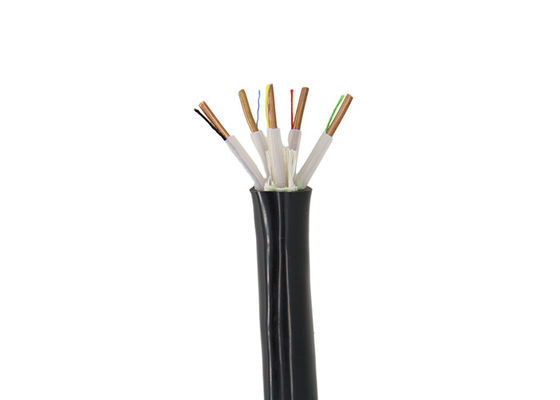

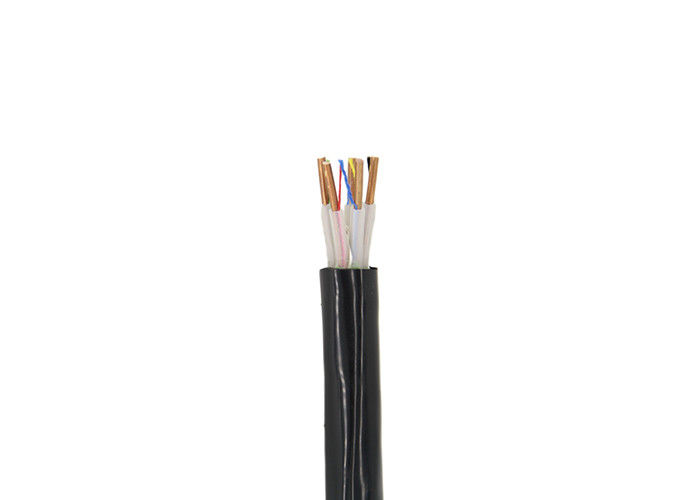

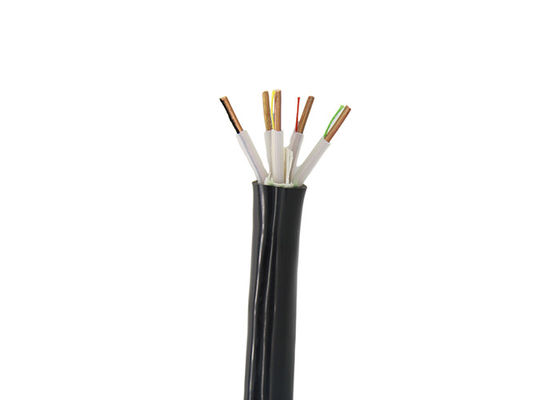

5 Core Low Voltage Underground Cable
Product Description
A five-core low-voltage cable has five core wires insulated from each other, and a plastic sheath or steel armor plus a plastic sheath that wraps the five core wires is outside.
It includes five core conductors each provided with an insulating layer, an outer sheath is provided outside each core conductor, and a filler is filled between each core conductor.
Application:
LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales
Construction:
Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheath
| Five(5) core, XLPE Insulated Power Cable |
| Size | Cable dia. | Cable weight |
| None- | Steel tape armored | Steel wire armored | None-armored | Steel tape armored | Steel wire armored |
| armored | CU | AL | CU | AL | CU | AL |
| mm2 | mm | kg/km |
| 50 | 27.1 | 30.3 | 34.7 | 2562 | 1053 | 2916 | 1407 | 3854 | 2344 |
| 70 | 31.3 | 36.1 | 38.9 | 3528 | 1415 | 4294 | 2180 | 5009 | 2895 |
