| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor: | Copper, Aluminum, Aluminum Alloy | Insulation: | XLPE, PVC, PE |
|---|---|---|---|
| Colour: | Black Or As Your Request | Standard: | GB/T12527, BS, IEC, ASTM, DIN |
| Voltage: | 600v To 35kv | Packing: | Wooden Drum, Steel Wooden Drum, Coil |
| Sample: | Free, Offered | ||
| High Light: | 70mm2 35KV aerial electrical cable,70mm2 air bunched cable,95mm2 aerial electrical cable |
||

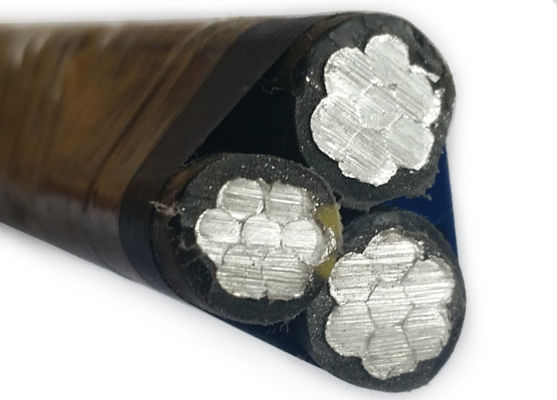

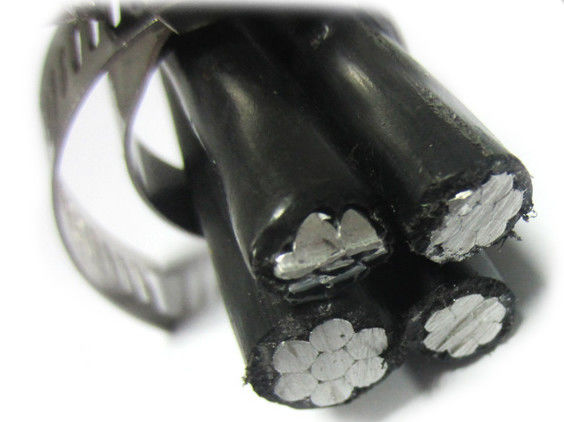

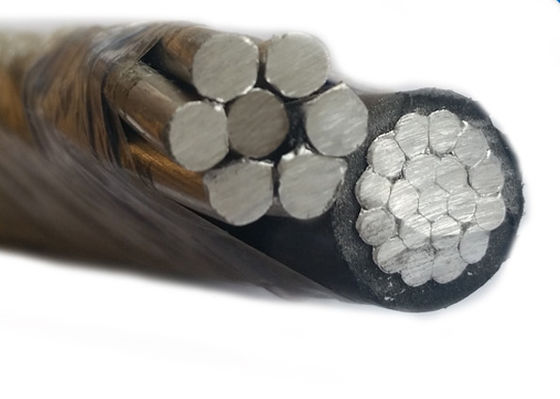

70mm2 95mm2 Multi Core 35KV Aerial Electrical Cable
Construction of ABC Aerial Bunched Cable:
Rated Voltage: 600V to 35KV
Phase Conductor: Copper or Aluminium or Aluminum Alloy
Insulation: PVC or PE or XLPE
Neutral Bare Conductor: AAC or ACSR or AAAC
Application of ABC Aerial Bunched Cable:
Aerial Bunched Cable (ABC Cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. The cable as a new-type aerial cable is applied to transmit and distribute power in overhead power transmission line, extensively used in rebuilding of urban and forest region electrified wire netting. It is also widely adopted in the fields including power, construction etc. in complete replace of oil immersed paper insulated power cable.
Type of ABC Aerial Bunched Cable:
Two Core (Duplex Service Drop)
Three Core (Triplex Service Drop)
Four Core (Quadruplex Service Drop)
The cable can be produced with the construction of phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor etc. And we can still produce the cables according to the request of customers.
600V XLPE Insulated ABC Aerial Bunched Cable Data
| Nominal cross-section area (mm2) | Conductor structure | Insulation material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx.weight (kg/km) | Packing meters per drum (m) | ||
| Phase (Compacted AL) | Neutral(bare ACSR) | |||||||
| (No./mm) | Aluminum (No./mm) | Steel (No./mm) | ||||||
| 1x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | xlpe | 1.2 | 12.5 | 121.9 | 250-4000 |
| 1x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | xlpe | 1.2 | 14.9 | 182.2 | 250-4000 |
| 1x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | xlpe | 1.4 | 17.5 | 254.7 | 250-3500 |
| 1x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | xlpe | 1.4 | 23.6 | 382.2 | 250-3000 |
| 1x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | xlpe | 1.6 | 27.6 | 528.2 | 250-3000 |
| 2x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | xlpe | 1.2 | 14.2 | 187.6 | 250-4000 |
| 2x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | xlpe | 1.2 | 16.7 | 273.8 | 250-3500 |
| 2x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | xlpe | 1.4 | 19.7 | 386.9 | 250-3500 |
| 2x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | xlpe | 1.4 | 26.1 | 617.2 | 250-3000 |
| 2x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | xlpe | 1.6 | 30.5 | 850.9 | 250-3500 |
| 3x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | xlpe | 1.4 | 29.7 | 1024.3 | 250-3000 |
| 3x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | xlpe | 1.6 | 34.6 | ||
