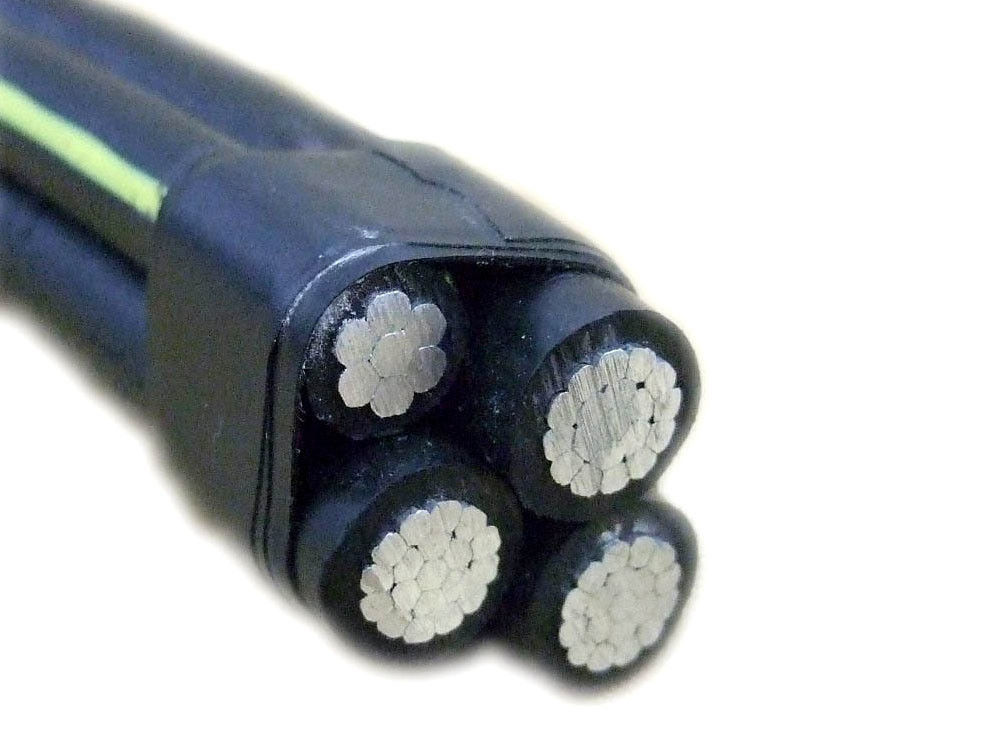

AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable

AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable

    • AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable
    • AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable
  • AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Conductor Material: CU AL Packing: Wooden(Steel) Drum, Steel-wooden Drums
    Name: Aerial Bundle Cable Type: Low Voltage, Medium Voltage, High Voltage
    Standard: IEC60502,GB/T12527,BS IEC ASTM DIN,ASTM,BS Conductor: Alulminum,AAC,ACSR,COPPER,Alulminum Or Copper
    Key Word: ABC Cable,high Quality With Good Price Package: Paper/wodden Reel Or Plastic Shrink,Wooden Durm
    Sample: Free,offered
    High Light:

    25mm2 Aerial Bundled Cable


    25mm2 abc power cable


    16mm2 Aerial Bundled Cable

    AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable




    a. Max operating temperature :XLPE insulation 90°C,High-density PE insulation 75°C,PVC insulation 70°C.

    b. Installing temperature of cable should not be below -20°C.

    c. Max short-circuit temperature,Not more than5 Sec:XLPE insulation 250°C,High-density PE insulation 150°C,PVC insulation 130°C.

    d. Permissible Bending radius of cable:Should be not less than 20(d+D)±5%mm. Where:D is overall diameter of cable; d is diameter of conductor.

    Type and Name:

    1. AAAC Conductor, All Aluminum Alloy Conductor:

    All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.

    2. AAC All Aluminum Conductor Cable:

    AAC conductors can be installed in air. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.

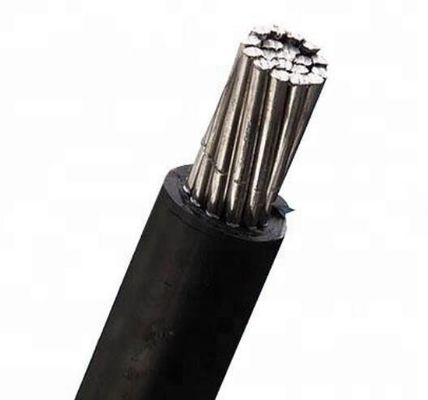

    AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable 0

    1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
    2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
    3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
    4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
    5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
    6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

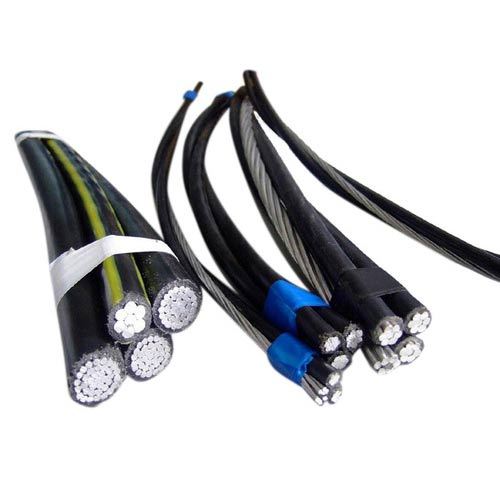

    ABC cable
    16 mm 2 * 2C ( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70
    16 mm 2 * 4C 3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70
    25 mm 2 * 2C ( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12
    25 mm 2 * 4C 3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12
    35 mm 2 * 2C ( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50
    35 mm 2 * 4C 3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50
    50 mm 2 * 2C ( AL19/1.78+PE O.D.11.7) + AL19/1.78
    50 mm 2 * 4C 3*(AL19/1.78+PE O.D.11.7) + AL19/1.78
    70 mm 2 * 2C ( AL19/2.12+PE O.D.13.5) + AL19/2.12
    70 mm 2 * 4C 3*(AL19/2.12+PE O.D.13.5) + AL19/2.12
    95 mm 2 * 2C ( AL19/2.50+PE O.D.15.8) + AL19/2.50
    95 mm 2 * 4C

    3*(AL19/2.50+PE O.D.15.8) + AL19/2.50




    Conductor: Solid or stranded copper,aluminum


    Insulation: Cross-linked polyethylene( XLPE or PVC)


    Circuit Identification: The insulation shall be red, black


    Filler: Polypropylene lament with lapped binding tape


    Inner Sheath: Polyvinyl chloride (Black)


    Armor: Aluminum wire/steel wire armour


    Core-covering: Binding tape


    Outer Sheath: Polyvinyl chloride (Black)


    Package: Wooden Drum Package or Iron-wooden drum


    Technical Data:


    No. Description Unit Data
    1 Manufacturer   Huanghe Cable Group
    2 Country of manufacturer   China
    3 Code Name   Condor
    4 Aluminum Area mm2 402.84
    4 Steel Area mm2 52.19
    5 Total Area mm2 455.03
    6 Aluminum Stranding & Wire Diameter mm 54/3.08
    6 Steel Stranding & Wire Diameter mm 7/3.08
    7 Approximate Overall Diameter mm 27.72
    8 Approximate Weight kg/km 1520.7
    9 Breaking Load KN 125.4
    10 DC Resistance @ 20°C Ohm/km 0.07192
    11 Current Rating A 614


    AAAC Conductor 16mm2 25mm2 4 Core Aerial Bundled Cable 1
