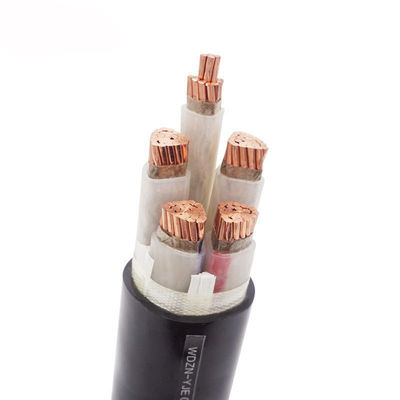

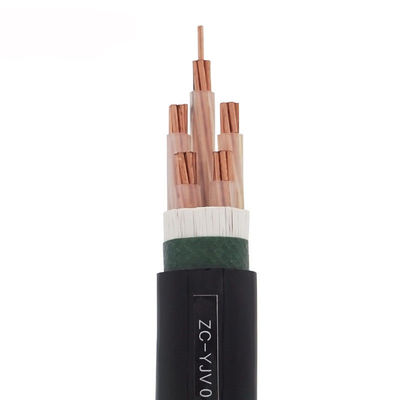

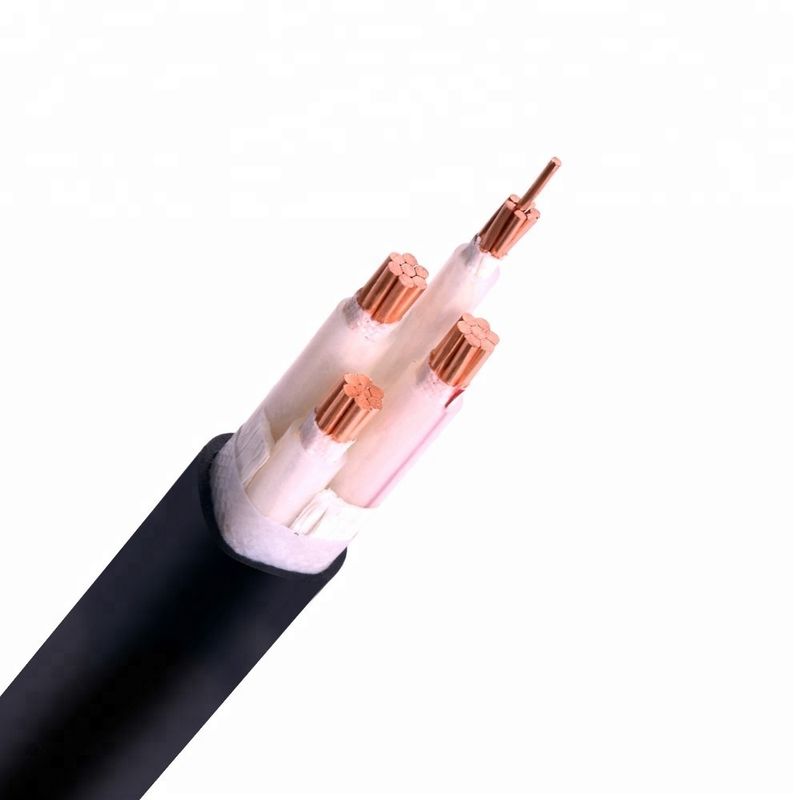

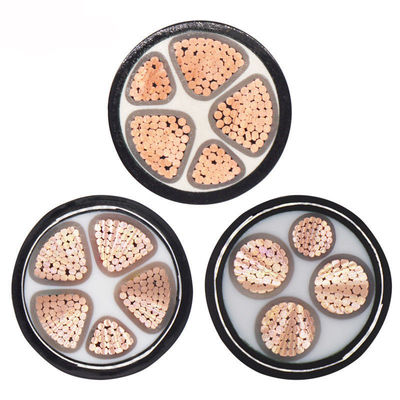

Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable

Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable

    • Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
    • Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
    • Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
    • Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
  • Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable

    Product Details:

    Place of Origin: china
    Brand Name: OEM
    Certification: ISO/RoHS/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: wooden drum
    Delivery Time: 5-15day
    Payment Terms: L/C, T/T
    Supply Ability: 50000meters per week
    Contact Now
    Detailed Product Description
    Insulation Material: Xlpe Type: High Voltage
    Application: Construction Conductor Material: Copper
    Jacket: PVC Color: Request
    Product Name: XLPE Insulated Conductor: Bare Copper
    Insulation: Mica+XLPE Core: Multi-core
    Name: High Voltage Power Cable Rated Voltage: 11KV 66KV
    High Light:

    150mm2 11KV HV Power Cable

    ,

    120mm2 HV Power Cable

    ,

    150mm2 HV Power Cable

    Cross Linked Polyethylene 11KV 66KV 185mm2 150mm2 HV Power Cable






    Product feature and purpose:



     Cross-linked polyethylene insulated power cables is characterized with high mechanical   strength,strong   resistance to environmental stress,excellent electrical properties ,powerful resistance  to chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and  designed  for power transmission and distribution system of rated voltage 0.6/1kv.In term of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only   limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.

    Operative standard:

     GB/T 12706,IEC 60502 and relevant domestic and international standard.For   example,BS,VDE,JIS,AEIC,and so on.
    Operational performance:
     The maximum allowable operating temperature of the cable conductor:90 C in normal condition and   250 C in case of short circuit (maximum duration of short circuit is 5s).


    NO.of cores×section
    (mm²)

    Normal insulation

     thickness(mm)

    Normal thickness of

    oversheath

    Approximate overall

    diameter of cable(mm)

    Approximate weight

    of cable(kg/km)

    Cu AL
    Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
    4×4 0.7 1.8 1.8 12.5  18.1 282 430 / /
    4×6 0.7 1.8 1.8 14.7 17 383 545 / /
    4×10 0.7 1.8 1.8 16.9 19.1 565 752 390 517
    4×16 0.7 1.8 1.8 19.3 21.6 783 1020 416 663
    4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
    4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
    4×50 1.0  1.8 1.9 28.0  32.6 2080 2812 961 1770
    4×70 1.1 2.0  2.1  33.2 37.5  2952 3796 1302 2222
    4×95 1.1 2.1  2.3 38.0  42.6 3970 4962 1693 2757
    4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
    4×150 1.4 2.4 2.6 46.0  51.3 5980 7170 2852 3878
    4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
    4×240 1.7 2.8 3.0  59.4 64.6 9764 11289 4032 5782
    4×300 1.8 3.0  3.1 66.2 71.6 12122 13856 4924 6735
    4×400 2.0  3.3  3.4 73.8 80.3  15624 18407 6272 9313
    4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
    4×630 2.4 3.8 4.0  99.6 106.3 25124 28895 9514 13293

    Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable 0Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable 1Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable 2
