| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Standard: | IEC,GB12706 | Voltage: | Low And Medium Voltage Cable |
|---|---|---|---|
| Conductor: | Alulminum Or Copper | Product Name: | Fire Resistant 4 Core Armoured Electrical Cable XLPE Copper Cable |
| Armour: | Steel Tape Armour | Voltage: | 1-35KV |
| High Light: | MV xlpe insulated cable,3 Core xlpe power cable,4 Core XLPE Power Cables |
||

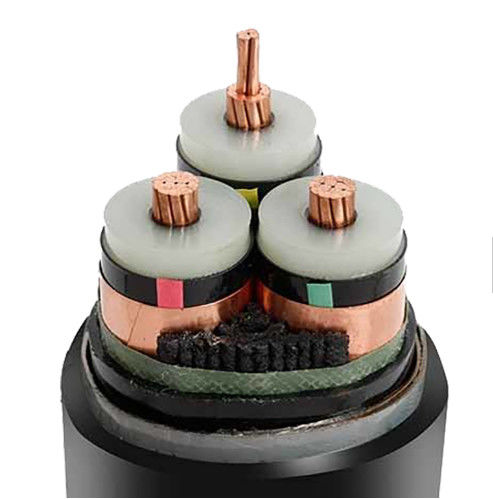

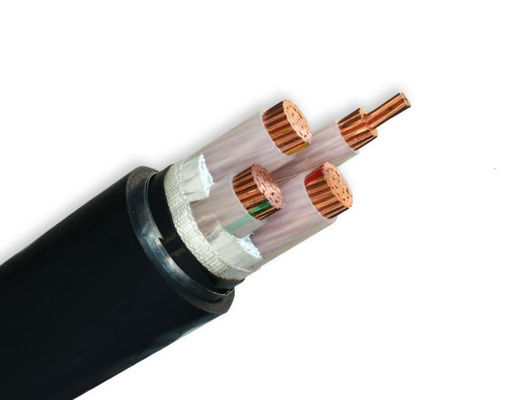

Steel Tape Armored SWA Cable Medium Voltage Power Cables One Core To Five Cores
Characteristics of 3 core power cable
Max Long time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
Installing temperature of cable should not be less than 0°C
Max short circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
Perfect chemical stability, resistant against acids,alkali, grease and organic solvents, and flamer retardant.
Medium voltage Al conductor one core to five cores XLPE Electrical Cable
| Type | Designation | Voltage |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | 1-35KV |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | 1-35KV |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | 1-35KV |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
Medium voltage Al conductor one core to five cores XLPE Electrical Cable
