Place of Origin: | china |
Brand Name: | OEM |
Certification: | ISO/RoHS/CE |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | wooden drum |
Delivery Time: | 5-15day |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000meters per week |
Conductor: | Class 5 Flexible Copper Conductor | Insulation: | XLPE |
---|---|---|---|
Bedding Layer: | Halogen-free Thermoplastic Polyolefin | Armour: | Galvanized Steel Wires |
Sheath: | Halogen-free Thermoplastic Polyolefin | Cross-sectional Diameter: | 10/16/25mm2 |
High Light: | 10mm2 armoured XLPE cable,16mm2 Armoured XLPE Cable,25mm2 Armoured XLPE Cable |

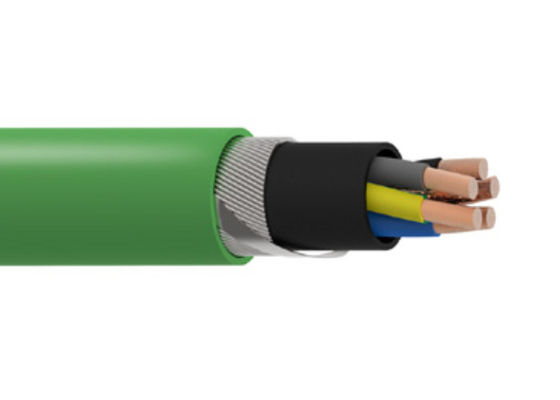

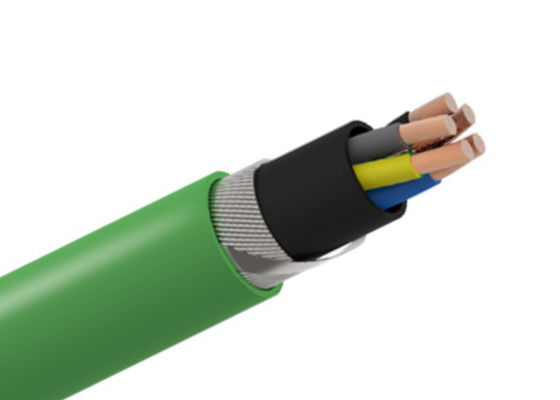

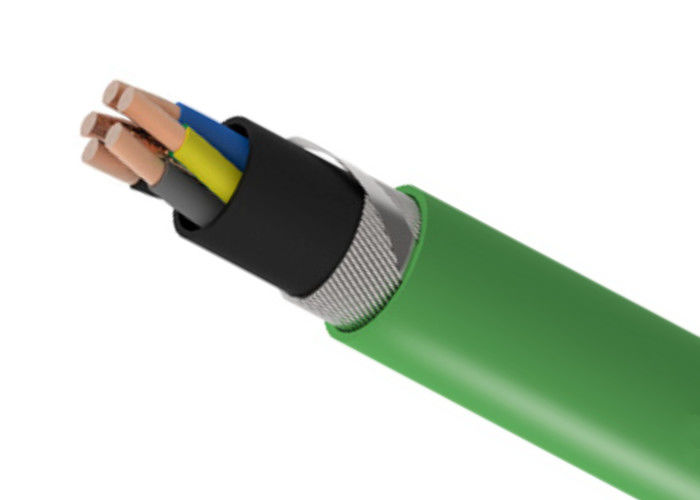

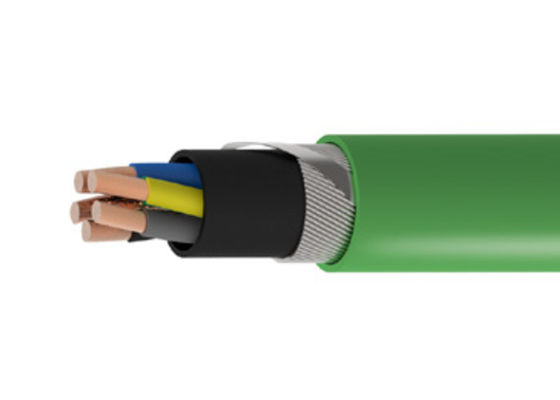

Galvanized Steel Wires 10mm 16mm 25mm 5 Core Armoured XLPE Cable
APPLICATION:
The armoured, halogen-free properties of this cable make it ideal for installations in public areas, hazardous areas and installations in general where the cable is subject to risk of mechanical aggresion

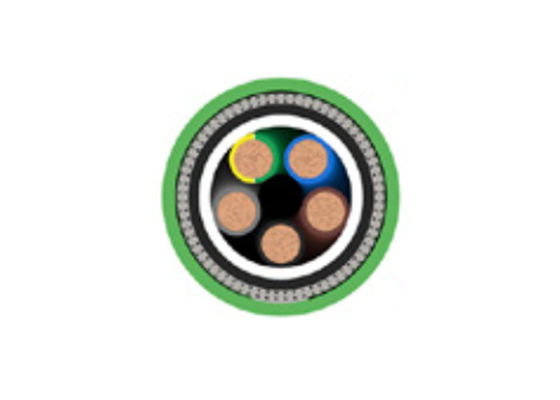

CONSTRUCTION:
Conductor
Class 5 flexible copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding Layer
Halogen-free thermoplastic polyolefin
Armour
Galvanized steel wires
Sheath
Halogen-free thermoplastic polyolefin
CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
-40oC to +90oC
Sheath Colour
Green
DIMENSIONS
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
DIAMETER UNDER ARMOUR mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
MINIMUM BENDING RADIUS mm |
2 5 |
1.5 6 |
7.6 13.9 |
12.5 19.7 |
290 850 |
125 |
CONDUCTORS
NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC |
Plain Wires ohms/km |
||
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 |
0.26 0.26 0.31 0.31 0.41 0.41 0.41 0.41 0.41 0.51 0.51 0.51 0.51 0.51 0.51 |
13.3 7.98 4.95 3.3 1.91 1.21 0.78 0.554 0.386 0.272 0.206 0.161 0.129 0.106 0.080 |
ELECTRICAL CHARACTERISTICS
NOMINAL CROSS SECTIONAL AREA mm² |
CURRENT CARRYING CAPACITY | VOLTAGE DROP V/A/km |
||||
2 Core Cables | 3, 4 and 5 Core Cables | Cos Ɵ 0.8 | Cos Ɵ 1 | |||
In Air at 40°C Amps |
In Ground at 25°C Amps |
In Air at 40°C Amps |
In Ground at 25°C Amps |
|||
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 |
24 33 45 57 79 105 123 154 188 244 296 348 404 464 552 |
27 36 46 58 77 100 128 154 183 224 265 302 342 383 442 |
20 26 36 46 65 87 110 137 167 214 259 301 353 391 468 |
23 30 38 48 64 82 106 129 152 187 222 253 286 320 370 |
23.61 14.2 8.839 5.919 3.458 2.218 1.458 1.057 0.759 0.556 0.438 0.358 0.302 0.262 0.215 |
29.374 17.62 10.93 7.288 4.218 2.672 1.723 1.224 0.852 0.601 0.455 0.356 0.285 0.234 0.177 |
