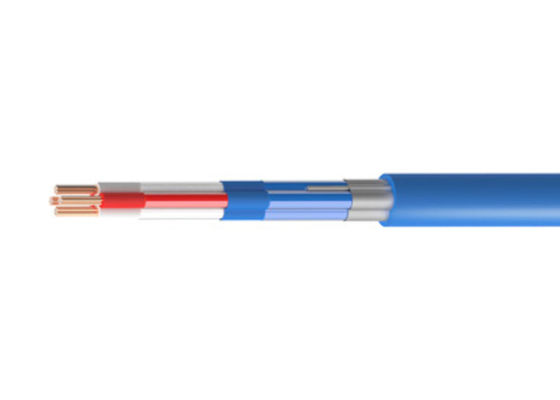

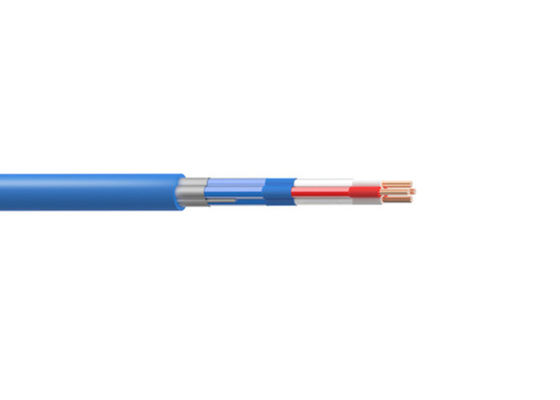

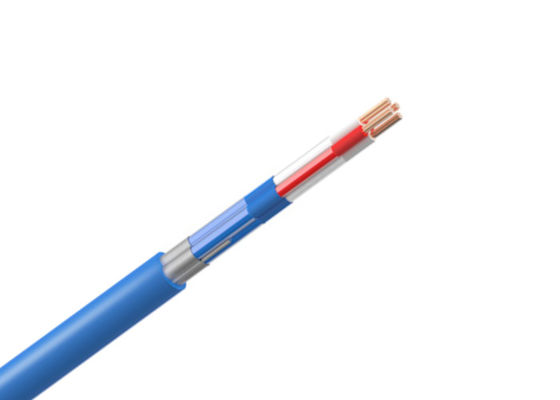

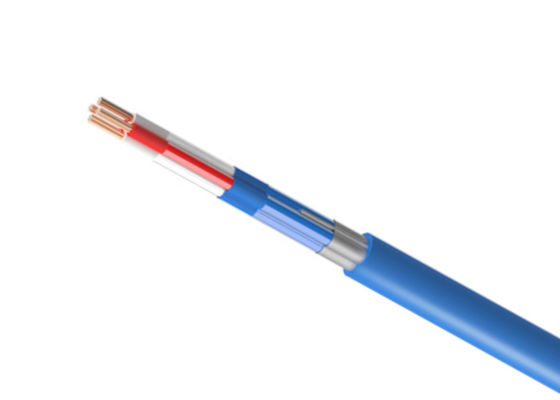

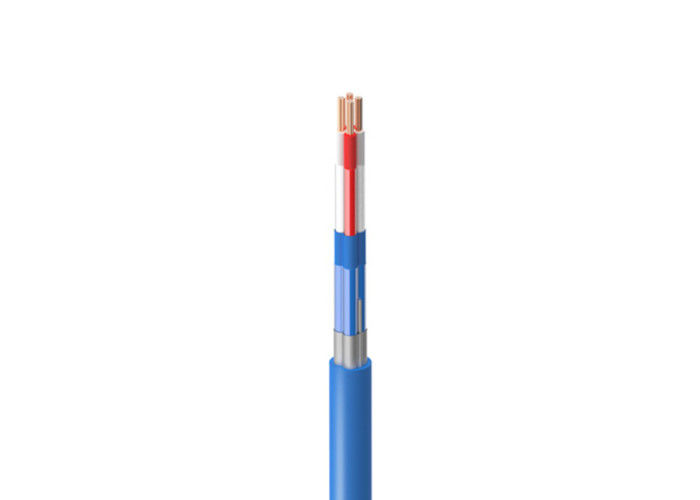

Petrochemical Units 300V / 500V 0.5mm2 0.88mm2 PVC Insulated Power Cable
APPLICATION:
These cables are designed for safe use in petroleum and petrochemical units particularly for the transmission of AC or DC analogue signals. Suitable for aliphatic hydrocarbons resistance applications

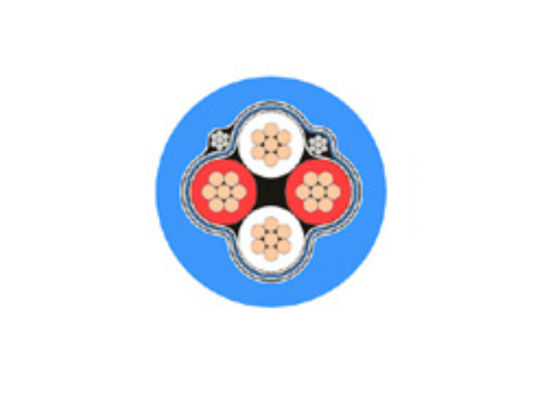

CONSTRUCTION:
Conductor
Class 1 solid copper conductor according to UTE C 32-014
Class 2 stranded copper conductor according to UTE C 32-014
Insulation
PVC (Polyvinyl Chloride) according to NF C32-020
Individual Binder Tape
PET (Polyester Tape)
Individual Screen
AL/PET (Aluminum/Polyester Tape)
Individual Sheath
PVC (Polyvinyl Chloride) according to NF C32-020
Overall Binder Tape
PET (Polyester Tape)
Collective Screen
AL/PET (Aluminum/Polyester Tape)
Sheath
PVC (Polyvinyl Chloride) according to NF C32-020
CHARACTERISTICS:
Voltage Rating (Uo/U)
300/500V
Installation Temperature Range
+5°C to +50°C
Operating Temperature
+90°C
Core Identification
Pairs: White and Red numbered
Triples: Blue White and Red numbered
Sheath Color
Light Blue
DIMENSIONS
P = Pairs, Q = Quad, T = Triple
| NO. OF PAIRS/TRIPLE |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
| 1P 1P 1P 1T 1T 1T 2P(Q) 2P(Q) 2P(Q) 2T 2T 2T 3P 3P 3P 3T 3T 3T 7P 7P 7P 7T 7T 7T 12P 12P 12P 12T 12T 12T 19P 19P 19P 19T 19T 19T 27P 27P 27P 27T 27T 27T |
0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 0.5 0.88 1.5 |
6.1 7.4 8.3 6.3 7.7 8.7 6.7 8.5 9.4 10.9 14.1 16.1 11.1 14.3 16.2 11.6 15 17.1 15.2 19.5 22.2 15.9 25 23.8 20.6 26.4 30.2 21.6 27.8 31.9 24.7 31.2 35.7 25.9 32.9 37.7 29.7 37.7 43.3 31.2 39.8 45.8 |
CONDUCTORS
| NOMINAL CROSS SECTIONAL AREA mm² |
CONDUCTOR CLASS |
MAXIMUM DC RESISANCE OF CONDUCTOR AT 20°C ohms/km |
| 0.5 0.88 1.5 |
1 2 1 |
37.9 21.6 12.5 |
ELECTRICAL CHARACTERISTICS
| NOMINAL CROSS SECTIONAL AREA mm² |
CONDUCTOR CLASS |
MAXIMUM MUTUAL CAPACITANCE | |
| Between Conductors pF/m |
Between Conductors and Screens pF/m |
||
| 0.5 0.88 1.5 |
1 2 1 |
160 145 85 |
230 210 180 |
