| Conductor: | Stranded Copper | Screen: | Semi- Conductive Tape |
|---|---|---|---|
| Insulation: | XLPE | Matel Screen: | Copper Wire Screen |
| Filler: | Filler | Sheath: | Separation |
| Armoured: | Galvanized Steel Tape | Outer Sheath: | PVC |
| High Light: | 73mm Armoured Power Cables,76mm Armoured Power Cables,armoured cable 16mm 3 core |
||

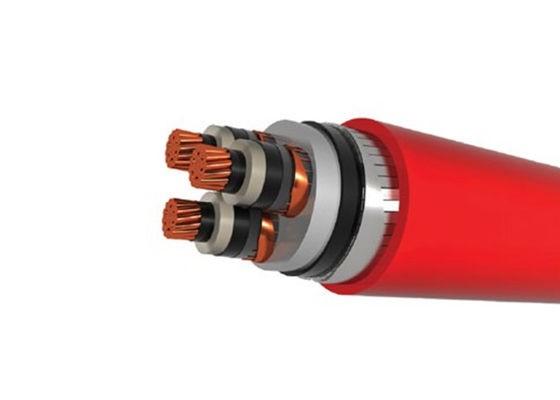

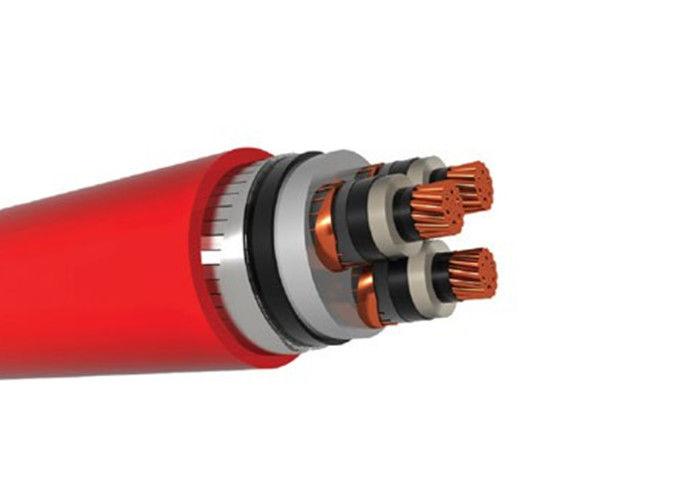

PVC Outer Sheath 3 Core 73mm 76mm Armoured Power Cables
YXC8VZ3V-R 18/30kV TS IEC 60502-2 N2XSEYFGbY 18/30kV VDE 0276
Structure
1. Stranded copper conductor
2. Inner semi-conductive
3. XLPE insulation
4. Outer semi - conductive layer
5. Semi- conductive tape
6. Copper wire screen
7. Filler
8. Separation sheath
9. Galvanized flat steel wire
10. Galvanized steel tape
11. PVC outer sheath
| Rated Cross Section |
Overall Diameter Of Cable |
Current Carrying Capacity |
Operating Inductance |
Operating Capacity |
Conductor DC Resistance at (20 °C) |
Net Weight |
|
| mm2 | mm | Air (A) | Ground (A) | MH/Km | µF/Km | Ohm/Km | Kg/Km |
| 3x35/16 | 73.00 | 182 | 183 | 0,46 | 0,11 | 0,524 | 8000 |
| 3x50/16 | 76.00 | 217 | 214 | 0,44 | 0,12 | 0,387 | 8900 |
| 3x70/16 | 80.50 | 269 | 261 | 0,41 | 0,14 | 0,268 | 10330 |
| 3x95/16 | 84.50 | 326 | 313 | 0,39 | 0,16 | 0,193 | 11740 |
| 3x120/16 | 88.50 | 377 | 356 | 0,38 | 0,17 | 0,153 | 13050 |
| 3x150/25 | 91.00 | 426 | 400 | 0,36 | 0,19 | 0,124 | 14420 |
| 3x185/25 | 96.00 | 488 | 441 | 0,35 | 0,20 | 0,0991 | 16220 |
| 3x240/25 | 101.00 | 576 | 510 | 0,33 | 0,21 | 0,0754 | 18800 |
| 3x300/25 | 107.00 | 654 | 604 | 0,32 | 0,23 | 0,0601 | 21640 |
| 3x400/35 | 114.50 | 754 | 688 | 0,30 | 0,25 | 0,0470 | 25620 |
