| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |

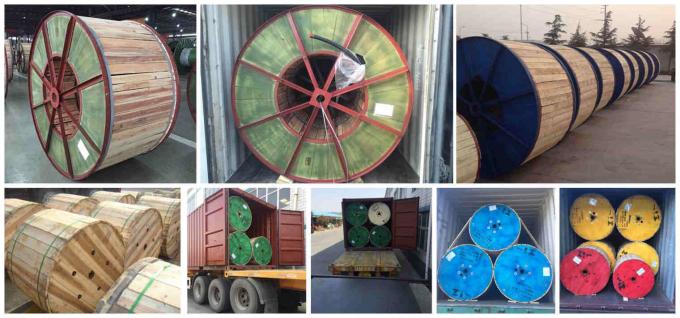

| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Conductor: | Copper, Aluminum | Insulation: | Polyvinyl Chloride (PVC) |
|---|---|---|---|
| Armour: | DSTA, SWA, AWA | Outer Sheath: | PVC, LSZH |
| Sample: | Free Sample | Colour: | Black Or As Requirement |
| Application: | Construction, Industrial, Underground Etc. | Standard: | IEC, JIS, UL, BS, IEC, ASTM, DIN |
| High Light: | PVC Insulated low voltage flexible cable,1.5mm2 low voltage flexible cable,3 Core low voltage flexible cable |
||

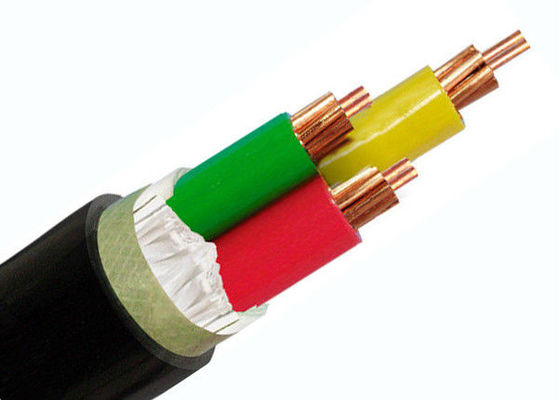

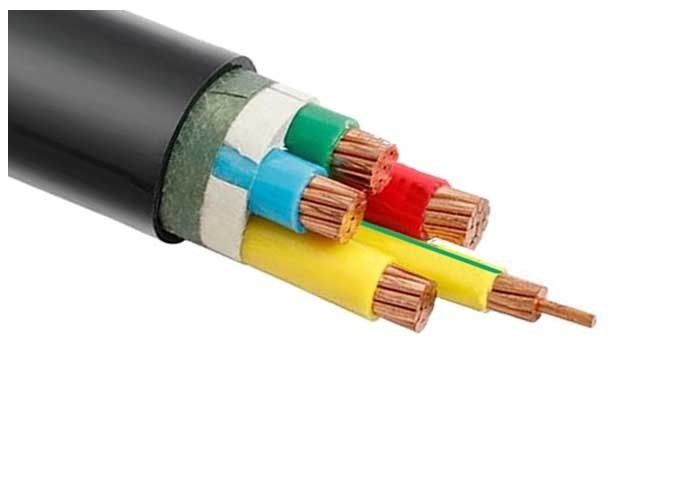

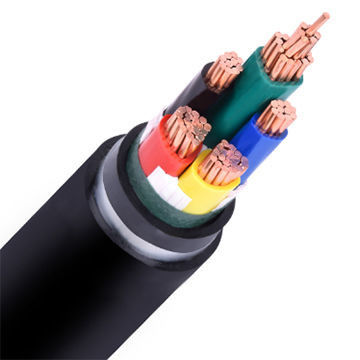

3 Core 5 Core PVC Insulated 1.5mm2 Low Voltage Flexible Cable
Conductor: Solid or stranded copper or aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC) or polyethylene (PE)
Armouring: AWA (Aluminium Wire Armour) or SWA (Steel Wire Armour) or STA (Steel Tape Armour) or unarmoured
Sheath: Polyvinyl chloride (PVC)
PVC INSULATED LOW VOLTAGE ELECTRICAL CABLE APPLICATION
Low voltage pvc insulated electrical cable is used for electrical power transmission and distribution lines with AC rated voltage Uo/U up to and including 0.6/1kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying as well as in locations susceptible to sliding.
PVC INSULATED LOW VOLTAGE ELECTRICAL CABLE NORMINAL AREA
0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10m2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2
LOW VOLTAGE ELECTRICAL CABLE CORES
1 core, 2 core, 3 core, 4 core, 5 core, 2+1 core, 3+1 core, 3+2 core, 4+1 core
PVC INSULATED LOW VOLTAGE CABLE FEATURES
1. Long term working temperature: 70℃
2. Short circuit temperature: not more than 160℃. (Lasting time is not over 5 seconds).
3. Laying temperature: Not less than 0℃.
4. Easy for installation, easy bending and light.

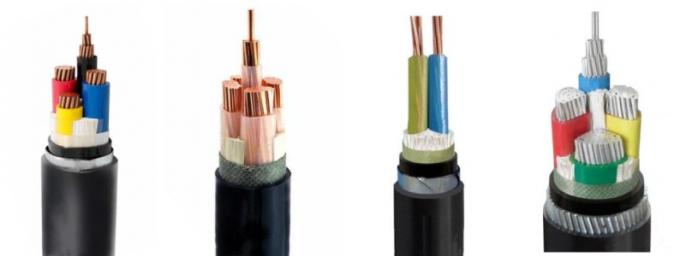

PVC INSULATED LOW VOLTAGE ELECTRICAL CABLE TYPES
| Type | Name |
|
VV VLV |
Copper (aluminum) Conductor, PVC insulated and Sheathed Power Cable |
|
VY VLY |
Copper (aluminum) Conductor, PVC insulated, PE Sheathed Power Cable |
|
VV22 VLV22 |
Copper (aluminum) Conductor, PVC insulated, Steel-tape Armoured, PVC Sheathed Power Cable |
|
VV23 VLV23 |
Copper (aluminum) Conductor, PVC insulated, Steel-tape Armoured, PE Sheathed Power Cable |
|
VV32 VLV32 |
Copper (aluminum) Conductor, PVC insulated, Fine Steel-wire Armoured, PVC Sheathed Power Cable |
|
VV33 VLV33 |
Copper (aluminum) Conductor, PVC insulated, PE Sheathed Power Cable |
|
VV42 VLV42 |
Copper (aluminum) Conductor, PVC insulated, Thick Steel-wire Armoured, PVC Sheathed Power Cable |
|
VV43 VLV43 |
Copper (aluminum) Conductor, PVC insulated, Thick Steel-wire Armoured, PE Sheathed Power Cable |
3 CORE UNARMOURED PVC LOW VOLTAGE CABLE DATA
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×1.5 | 0.7 | 1.8 | 10.1 | 132 | 21 | 28 | 12.1 |
| 3×2.5 | 0.7 | 1.8 | 11.0 | 171 | 28 | 37 | 7.41 |
| 3×4.0 | 0.7 | 1.8 | 12.0 | 225 | 37 | 48 | 4.61 |
| 3×6.0 | 0.7 | 1.8 | 13.1 | 296 | 47 | 61 | 3.08 |
| 3×10 | 0.7 | 1.8 | 15.3 | 440 | 64 | 82 | 1.83 |
| 3×16 | 0.7 | 1.8 | 17.5 | 638 | 85 | 107 | 1.15 |
| 3×25 | 0.9 | 1.8 | 21.0 | 954 | 115 | 138 | 0.73 |
| 3×35 | 0.9 | 1.8 | 23.1 | 1266 | 140 | 165 | 0.52 |
| 3×50 | 1.0 | 1.8 | 23.4 | 1614 | 168 | 198 | 0.39 |
| 3×70 | 1.1 | 1.9 | 27.4 | 2264 | 213 | 242 | 0.27 |
| 3×95 | 1.1 | 2.0 | 30.6 | 2975 | 263 | 290 | 0.19 |
| 3×120 | 1.2 | 2.1 | 34.0 | 3776 | 307 | 330 | 0.15 |
| 3×150 | 1.4 | 2.3 | 38.6 | 4682 | 357 | 371 | 0.12 |
| 3×185 | 1.6 | 2.4 | 43.3 | 5802 | 415 | 418 | 0.10 |
| 3×240 | 1.7 | 2.6 | 48.1 | 7437 | 498 | 485 | 0.08 |
| 3×300 | 1.8 | 2.8 | 52.2 | 9313 | 575 | 548 | 0.06 |
