| Place of Origin: | china |
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000meters per week |
| Construction: | Copper Bare,solid,0,6mm Diameter | Insulation: | PVC |
|---|---|---|---|
| Shielding: | Plastic Foil | Sheath: | PVC |
| Certification: | VDE | Peak Operating Voltage: | 300V |
| Highlight: | 0.6mm LV Power Cables,0.6mm Low Voltage Power Cable,PVC Sheath LV Power Cables |
||

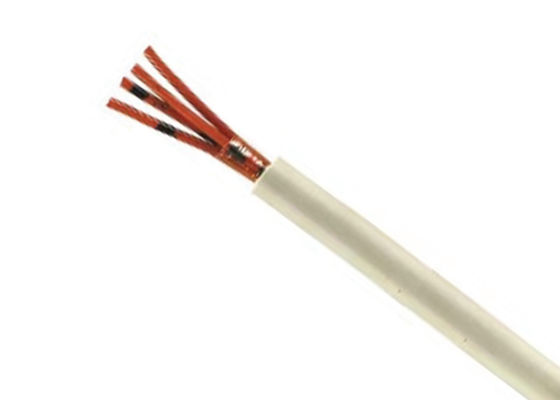

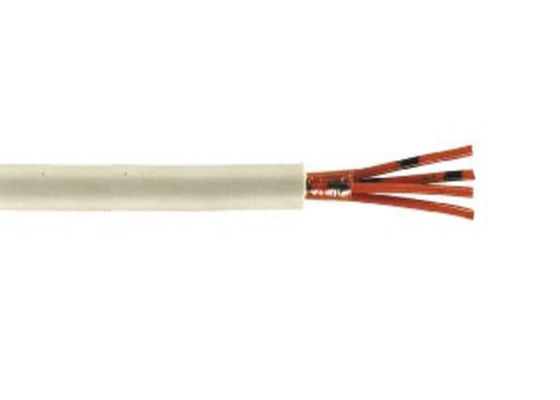

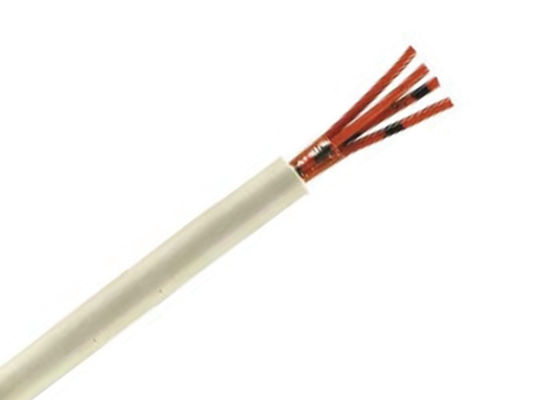

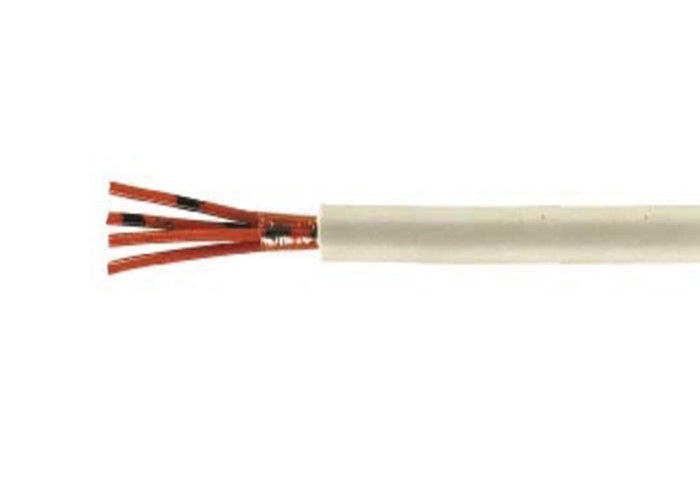

Diameter 0.6mm PVC Sheath LV Power Cables For Communication
Application
As communication cable for permanent installation. Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use. Not be used for power transmission and laying in ground.
Construction
Copper conductor:bare,solid,0,6mm diameter
Insulation: PVC
Stranding: 1*pair, cores twisted to star-quads, quads to units.
Shielding: plastic foil
Sheath: PVC, color: pebble grey, RAL 7032
Technical data
Conductor loop resistance: max.130Ω/km
Insulation resistance: min. 100MΩ*km
Operating capacity(800Hz): max.100Nf/km
Capacitance unbalance K, max.300pF/100m
Test voltage: 800v 50Hz 1Min.
Peak operating voltage: 300V
Temperature range
Flexing: -5℃…50℃
Fixed installation: -30℃…70℃
Minimum bending radius 7.5*cable diameter
|
Section mm2 |
Copper content kg/km |
| 1*2*0.6 | 5.7 |
| 2*2*0.6 | 11.0 |
| 4*2*0.6 | 23.0 |
| 6*2*0.6 | 34.0 |
| 10*2*0.6 | 57.0 |
| 12*2*0.6 | 70.0 |
| 16*2*0.6 | 90.0 |
| 20*2*0.6 | 113.0 |
| 24*2*0.6 | 138.0 |
| 30*2*0.6 | 170.0 |
| 40*2*0.6 | 226.0 |
| 50*2*0.6 | 283.0 |
| 60*2*0.6 | 339.0 |
| 80*2*0.6 | 452.0 |
| 100*2*0.6 | 565.0 |
