| Conductor: | Compact Stranded Copper | Conductor Screen: | Semi-conductive |
|---|---|---|---|
| Insulation: | EPR | Metal Screen: | Copper Tape |
| Outer Sheath: | CPE | Name: | MV Power Cables |
| High Light: | 350mm2 medium voltage power cables,250mm2 MV Power Cables,350mm2 MV Power Cables |
||

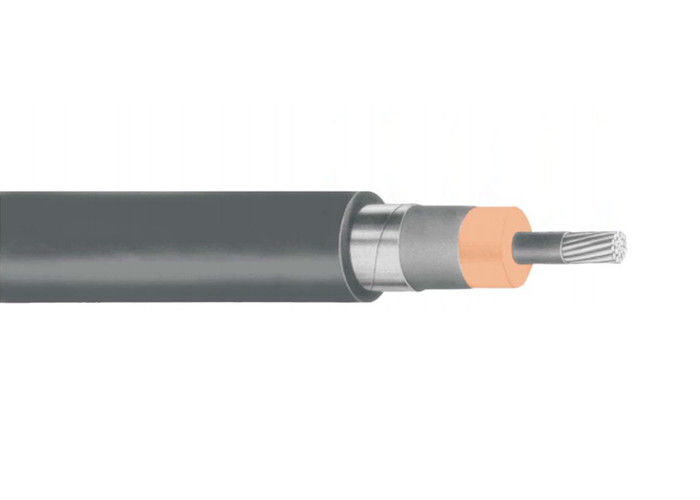

EPR Insulation 35KV 250mm2 350mm2 MV Power Cables For Feeder Circuits
Application:
35KV MV power cables are recommended for use as feeder circuits, in electric utility generating stations, for distribution circuits, and for feeders or branch circuits in industrial and commercial installations. Type MV cables may be installed in wet or dry locations, indoors or outdoors (exposed to sunlight), in any raceway or underground duct, directly buried if installed in a system with a grounding conductor in close proximity that conforms with NEC Section 250.4(A)(5), or messenger supported in industrial establishments and electric utilities. Sizes 1/0 AWG and larger may also be installed in cable tray.
Product Date:
| No. | Conductor Size | Approx. Dia.overall insulated | Approx. Dia.overall Screen | Outer Sheath Thickness | Approx. O.D. | Approx. Weight | Ampacities | ||||||||||||
| AWG or Kcmil | mm2 | in. | in. | mils | mm | inches | mm | Net | Gross | Conduit in Air | Underground Duct | Cable Tra | |||||||
| 345mils/8.76mm, 100% insulated level | |||||||||||||||||||
| 1 | 1/0 | 53.5 | 1.09 | 1.15 | 80 | 2.03 | 1.33 | 34.0 | 1140 | 1275 | 215 | 295 | 215 | ||||||
| 2 | 2/0 | 67.4 | 1.12 | 1.19 | 80 | 2.03 | 1.37 | 35.0 | 1270 | 1380 | 255 | 335 | 245 | ||||||
| 3 | 3/0 | 85.0 | 1.17 | 1.23 | 80 | 2.03 | 1.42 | 36.1 | 1420 | 1605 | 290 | 380 | 275 | ||||||
| 4 | 4/0 | 107.0 | 1.23 | 1.29 | 80 | 2.03 | 1.47 | 37.4 | 1595 | 1800 | 330 | 435 | 315 | ||||||
| 5 | 250 | 127.0 | 1.27 | 1.33 | 80 | 2.03 | 1.52 | 38.7 | 1760 | 1950 | 365 | 475 | 345 | ||||||
| 6 | 350 | 177.0 | 1.36 | 1.43 | 80 | 2.03 | 1.61 | 41.2 | 2150 | 2420 | 440 | 575 | 415 | ||||||
| 7 | 500 | 253.0 | 1.48 | 1.54 | 80 | 2.03 | 1.73 | 43.9 | 2720 | 3014 | 535 | 700 | 500 | ||||||
| 8 | 750 | 380.0 | 1.66 | 1.75 | 110 | 2.79 | 1.97 | 50.1 | 3765 | 4240 | 655 | 865 | 610 | ||||||
| 9 | 1000 | 507.0 | 1.81 | 1.86 | 110 | 2.79 | 2.12 | 53.9 | 4671 | 5300 | 755 | 1005 | 690 | ||||||
| No. | Conductor Size | Approx. Dia.overall insulated | Approx. Dia.overall Screen | Outer Sheath Thickness | Approx. O.D. | Approx. Weight | Ampacities | ||||||||||||
| AWG or Kcmil | mm2 | in. | in. | mils | mm | inches | mm | Net | Gross | Conduit in Air | Underground Duct | Cable Tra | |||||||
| 420mils/10.7mm, 133% insulated level | |||||||||||||||||||
| 1 | 1/0 | 53.5 | 1.24 | 1.30 | 80 | 2.03 | 1.49 | 37.9 | 1350 | 1535 | 215 | 295 | 215 | ||||||
| 2 | 2/0 | 67.4 | 1.28 | 1.34 | 80 | 2.03 | 1.53 | 39.0 | 1470 | 1665 | 255 | 335 | 245 | ||||||
| 3 | 3/0 | 85.0 | 1.32 | 1.39 | 80 | 2.03 | 1.57 | 40.0 | 1630 | 1825 | 290 | 380 | 275 | ||||||
| 4 | 4/0 | 107.0 | 1.39 | 1.45 | 80 | 2.03 | 1.64 | 41.9 | 1840 | 2085 | 330 | 435 | 315 | ||||||
| 5 | 250 | 127.0 | 1.42 | 1.48 | 80 | 2.03 | 1.69 | 42.9 | 1985 | 2250 | 365 | 475 | 345 | ||||||
| 6 | 350 | 177.0 | 1.52 | 1.58 | 110 | 2.79 | 1.83 | 46.5 | 2495 | 2770 | 440 | 575 | 415 | ||||||
| 7 | 500 | 253.0 | 1.63 | 1.69 | 110 | 2.79 | 1.94 | 49.3 | 3085 | 3555 | 535 | 700 | 500 | ||||||
| 8 | 750 | 380.0 | 1.81 | 1.87 | 110 | 2.79 | 2.12 | 53.9 | 4055 | 4680 | 655 | 865 | 610 | ||||||
| 9 | 1000 | 507.0 | 1.97 | 2.02 | 110 | 2.79 | 2.27 | 57.6 | 5980 | 5630 | 755 | 1005 | 690 | ||||||
